Installer des bouclier de protection sur votre 2 roues (moto ou scooter). Forme, couleur, materiau, type de fixation et d'ouverture sur mesure en fonction du model 2 roues de base.

Vous en voulez plus risquer votre vie en 2 roues : ce scooter shied (bouclier pour scooter) vous protege de 99% des chocs jusqu'à 60KM/h. il vous protege egalement du mauvais temps (vitrage complet avec essui glace en option), il peut vous permettre de rajouter une place assise : prolongation de la selle (3 adultes ou 2 adultes et 2 enfants).

Continuez de pouvoir vous faufiler, de rouler à moindre cout, de vous garer facilement mais....Protégé !!

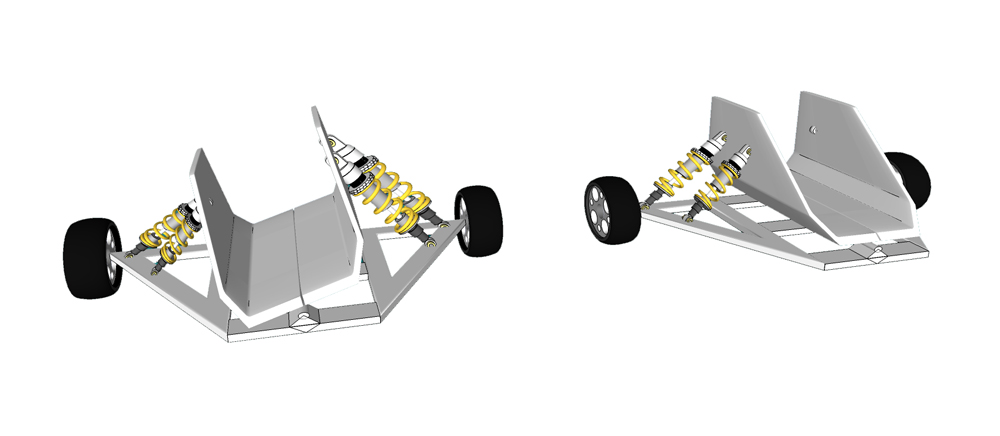

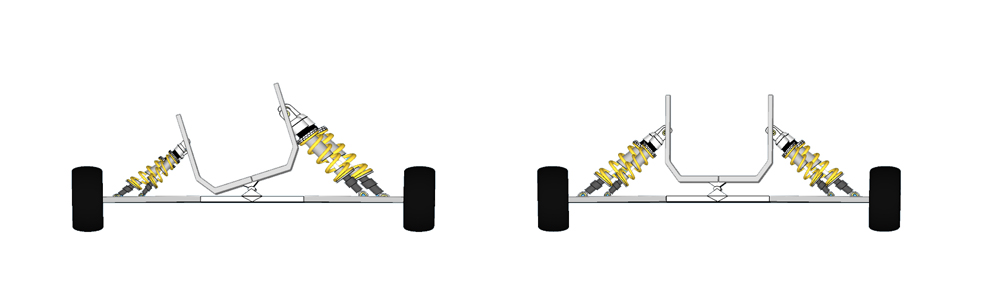

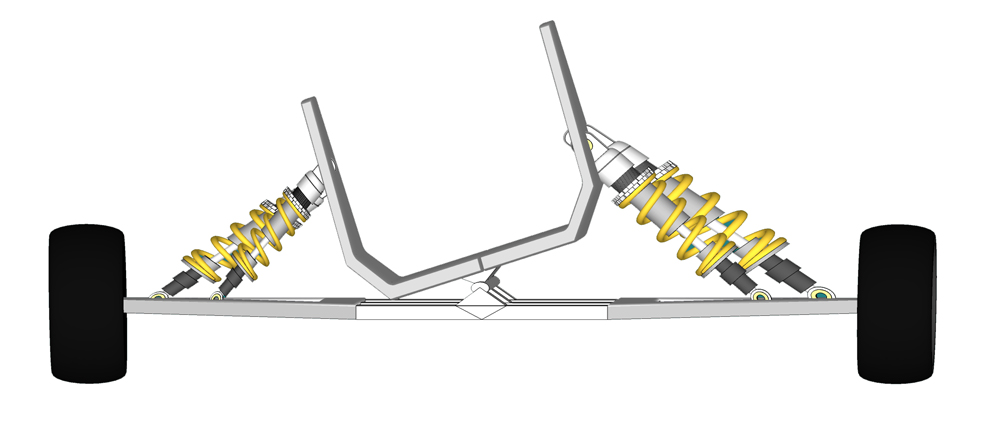

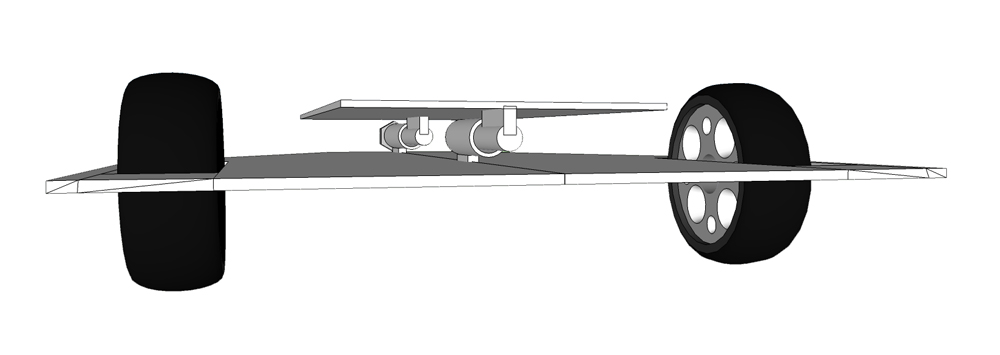

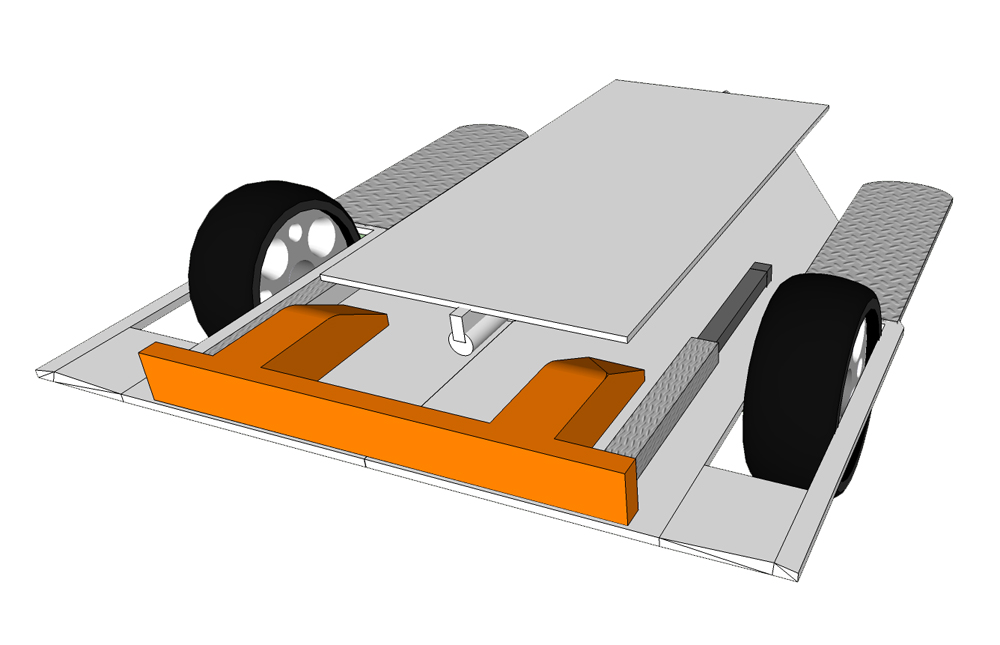

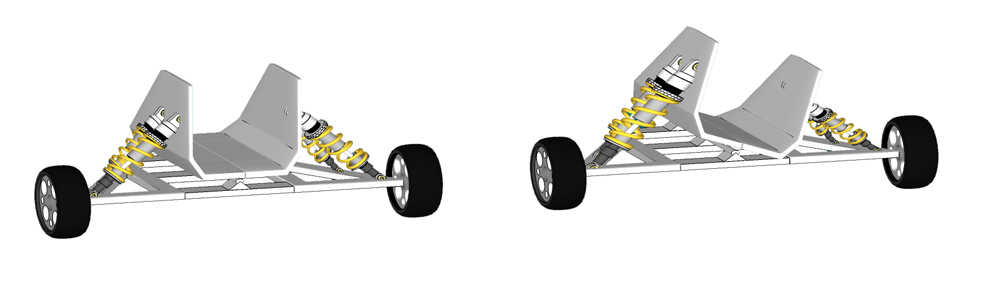

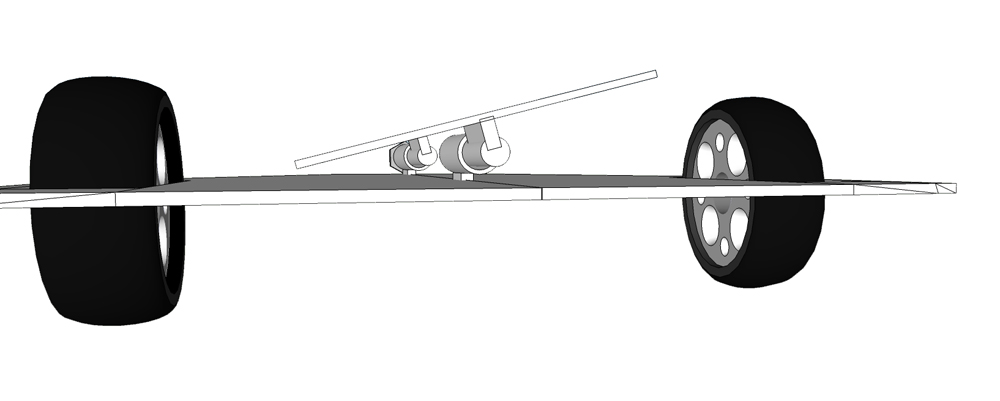

Dévellopé à Marrakech, Le stabilisateur adaptable pour 2 roues et scooter vous offre une securité equivalente à une petite voiture sans vous enlever le plaisir du 2 roues : STABSCOOT permet une inclinaison contrôlée dans les virages et un parfaite stabilité à vitesse lente ou au feux rouge. STABSCOOT se greffe sur le cadre de votre 2 roues par soudage ou boulonnage et offre un triangle metallique à roulettes qui vous suivra partout : les 4 roues (2 + 2) sont toujours en contact avec le sol que vous rouliez tout droit ou que vous tourniez. Meilleur adherence, meilleur sécurité, plus de pied posé au sol.

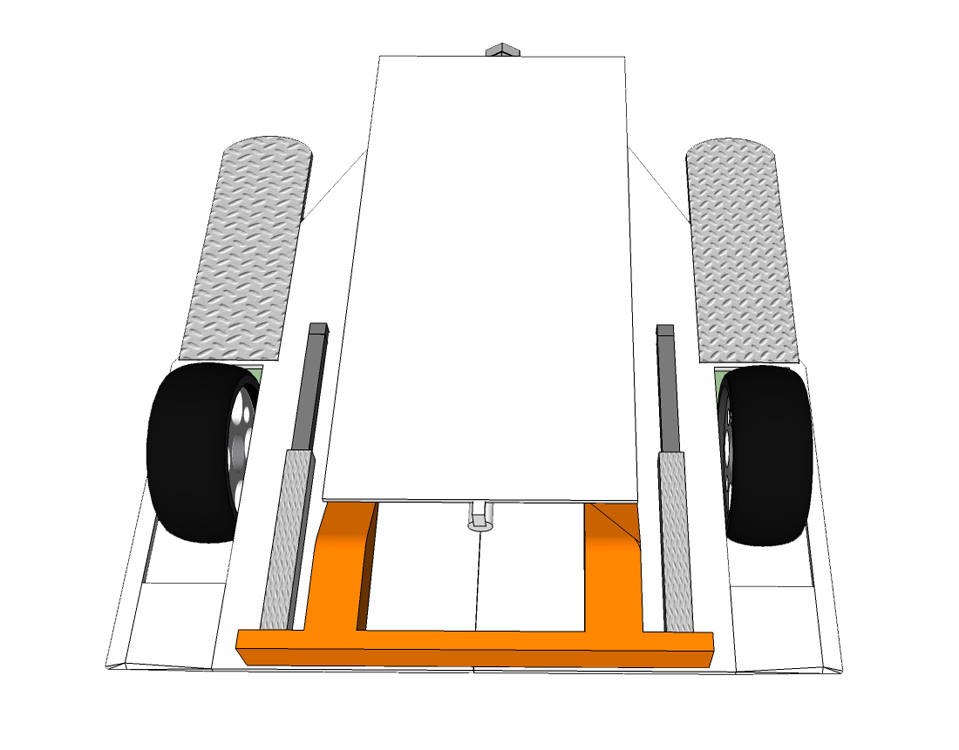

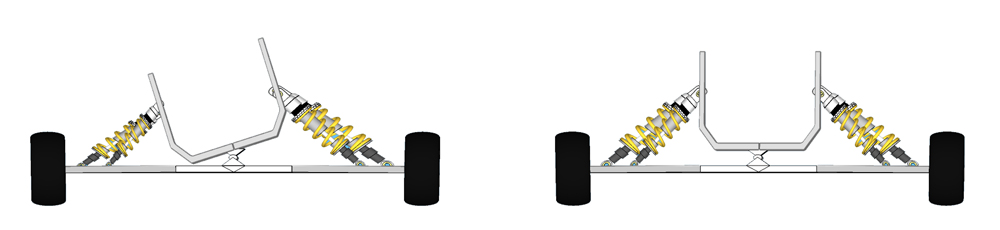

Vous ne poser plus les pieds par terre. Amortisseurs de mouvement d'inclinaison par ressort ou par ralentisseur de mouvements, et repositioneur : à tout instant par un simple mouvement au pied vous bloquer l'inclinaison : mouvement naturel au pied.

Le stabilisateur associé à une cabine transforme votre 2 roue en petite voiture avec passagers en ligne.

le scooter shield ou cabin scooter ou encore scooter limo est la solution pour désengorger le sur-trafic dans les villes.

Ce concept de vehicule en ligne occupe 3 fois moins d'espace qu'une voiture.

Nous pensons que c'est l'avenir du tranport courte distance, jusqu'à 4 passager en ligne...

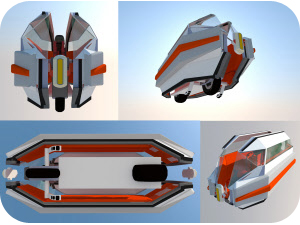

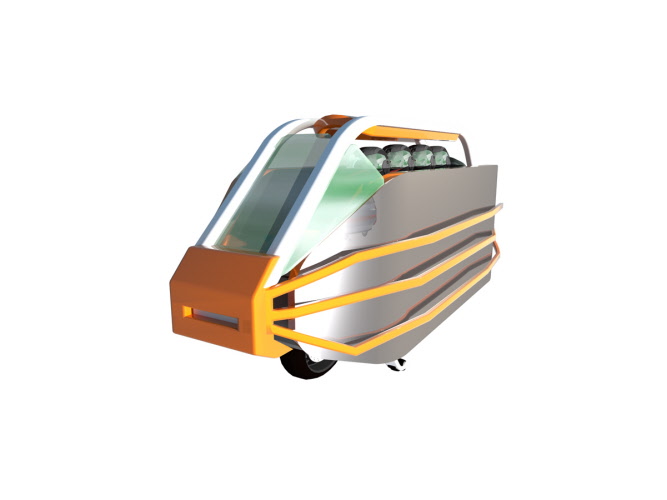

Full protection for scooter or 2 wheels motorbike. Single-hull.

This protective system consists of the following items:

metalic frame ready to weld or attach two wheels including the brackets (4 front 4 rear), one silent block multidirectional front and rear, 2 hinges at the front,  2 locks with handles at the back for opening-closing.

2 protective shells lateral composite aluminium (or other material) and synthetic foam mattresses covered with waterproof flexible material inwards.

2 vertical poles with protective top shell (same materials as the lateral shell)

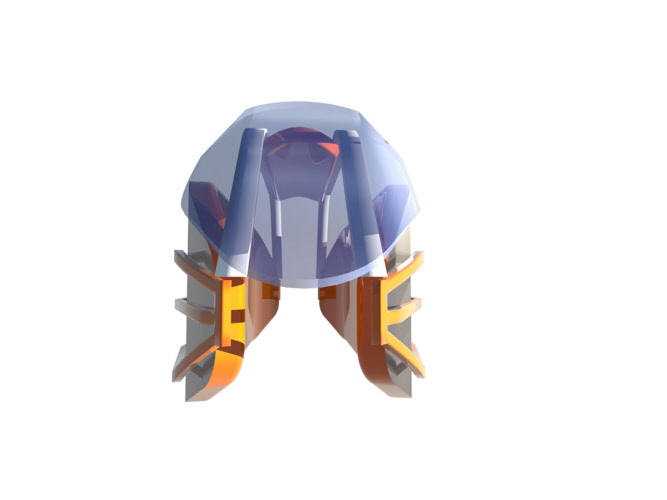

windshield (option)

mirrors  (option)

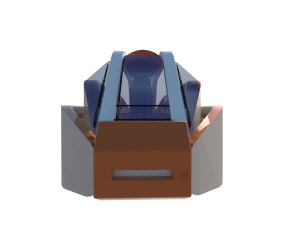

wiper  (option)

bumper or rear bumper front has variable size, semi flexible semi rigid INCORPORATING lights.  (option)

3 seater seat with belt and back, fixable on the vehicle to protect it.

Another feature: arrow shape of the front and rear protection limiting flat against flat frontal impacts.

Specific drawings:

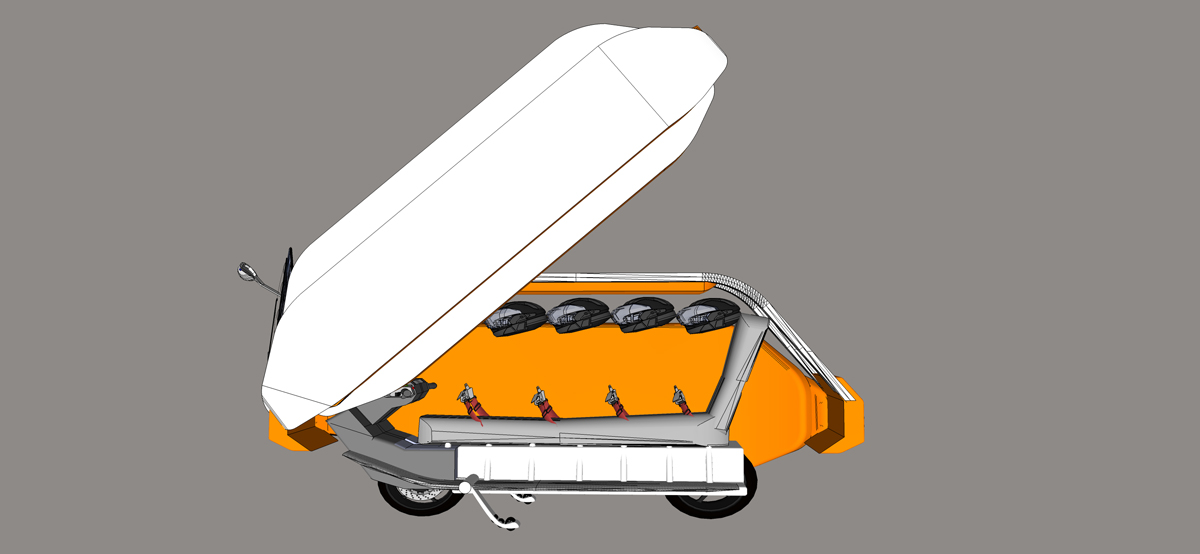

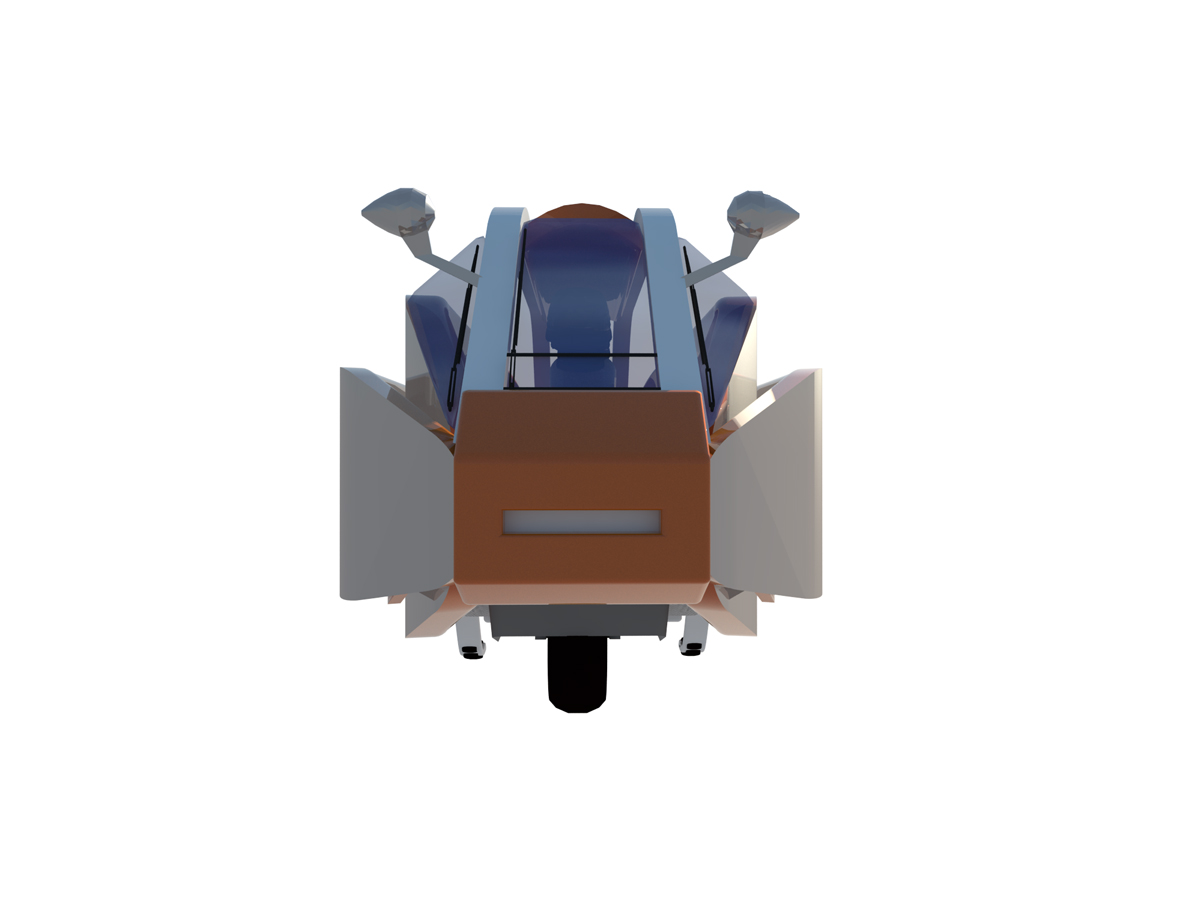

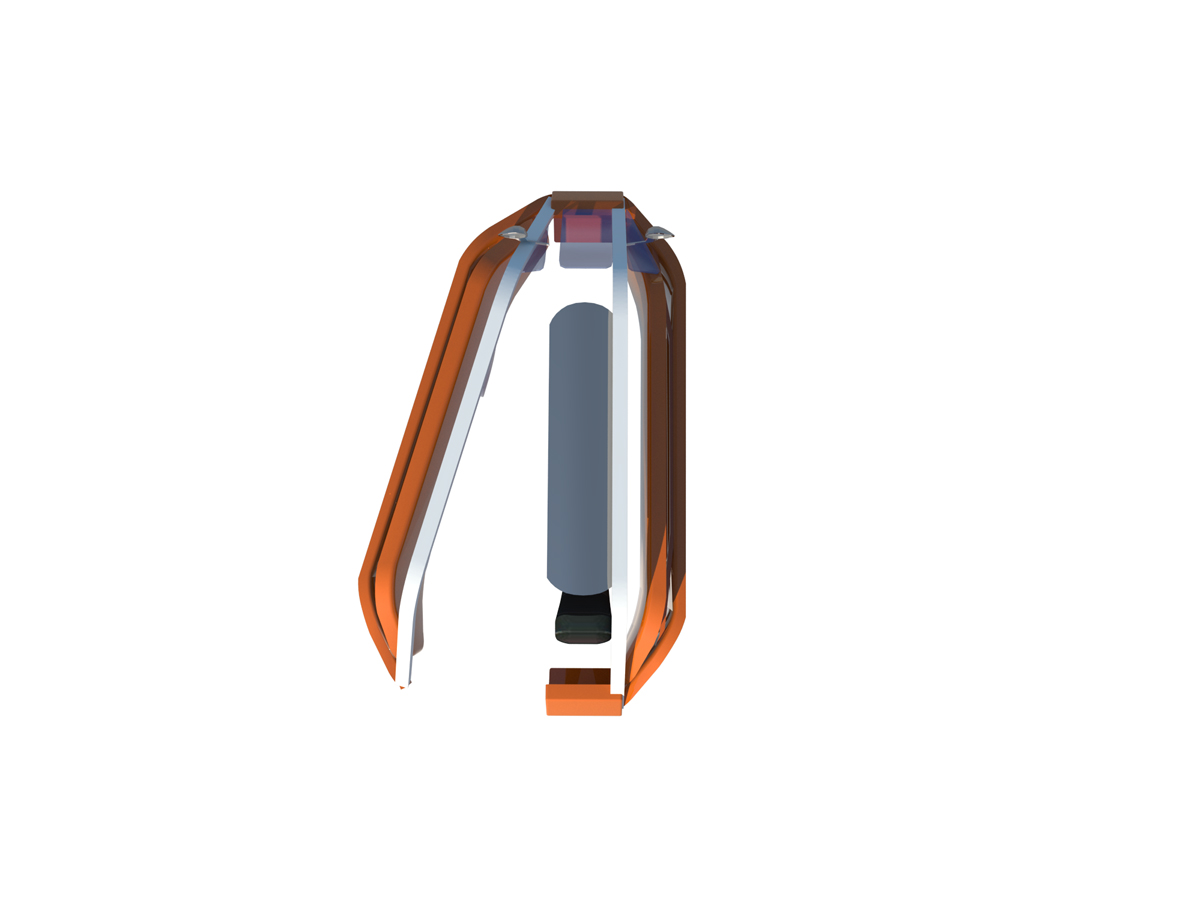

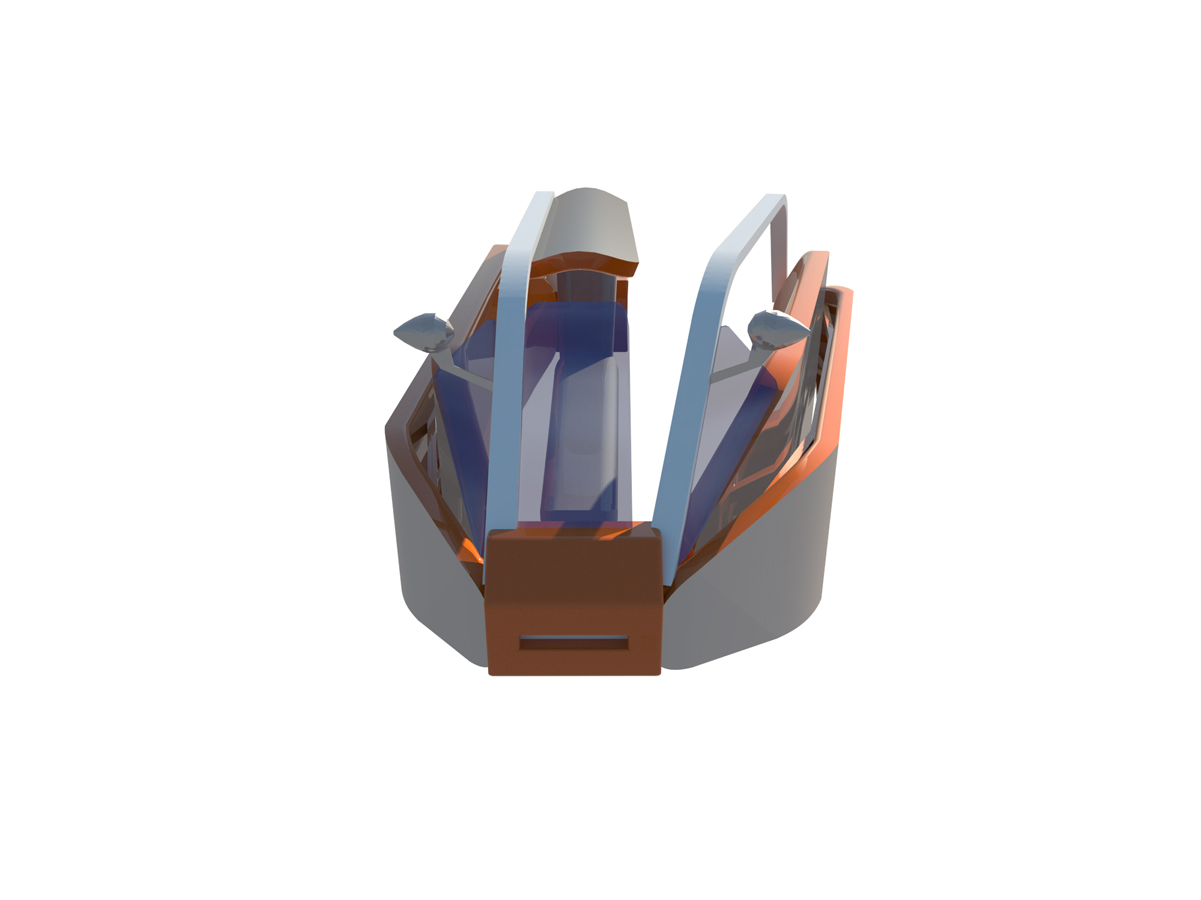

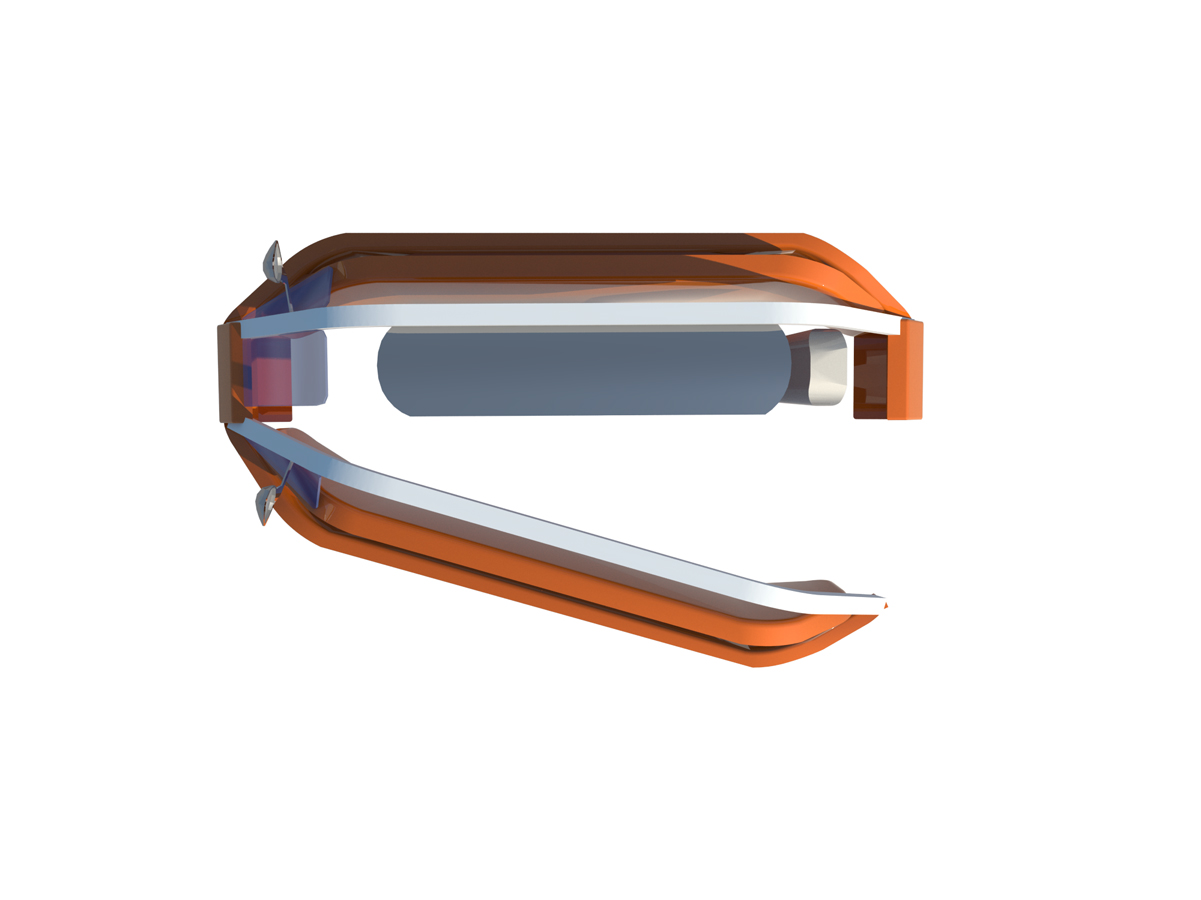

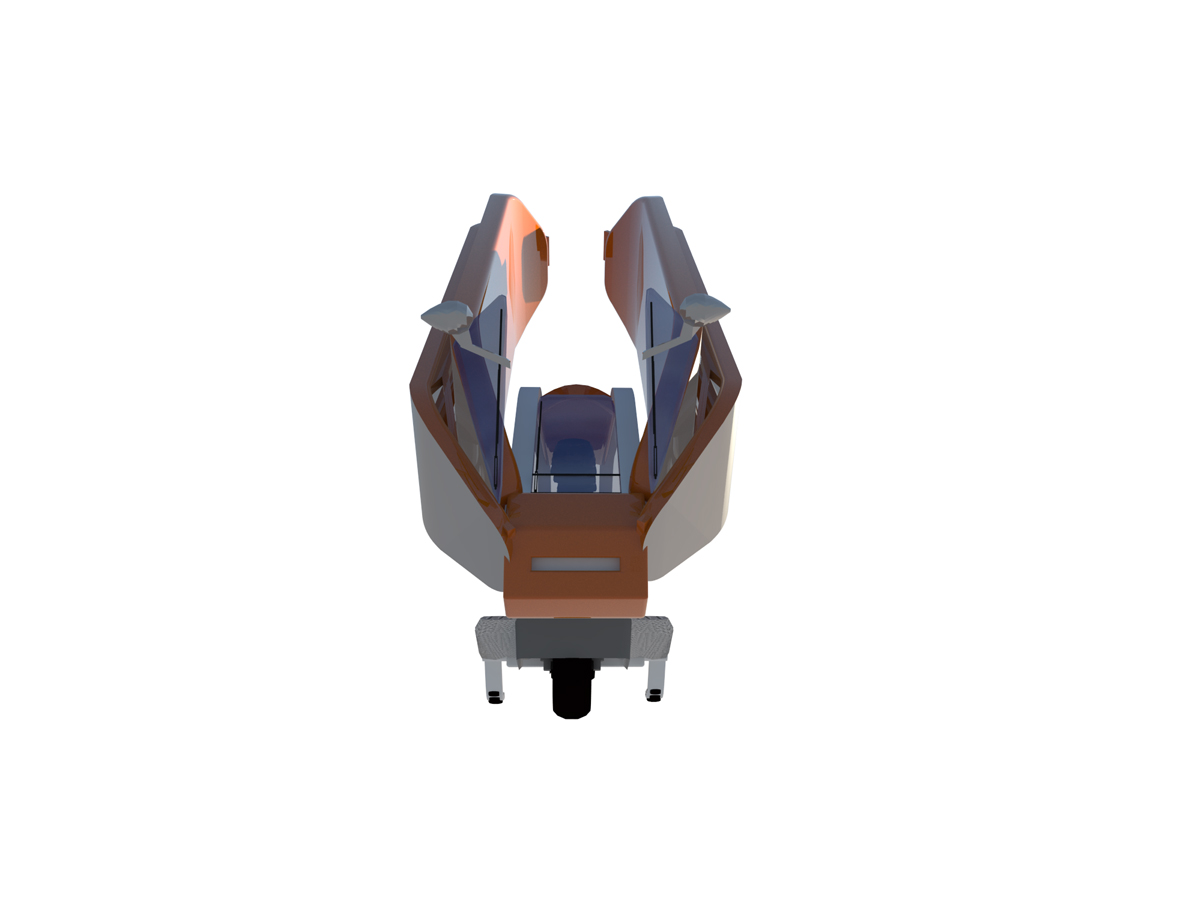

representation of the procedure to open door

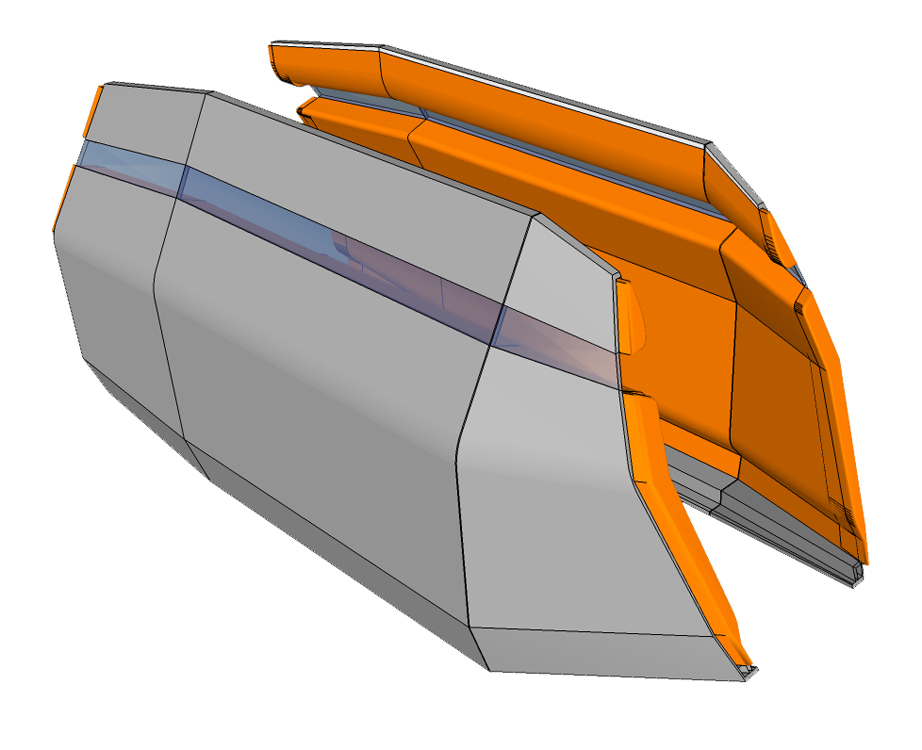

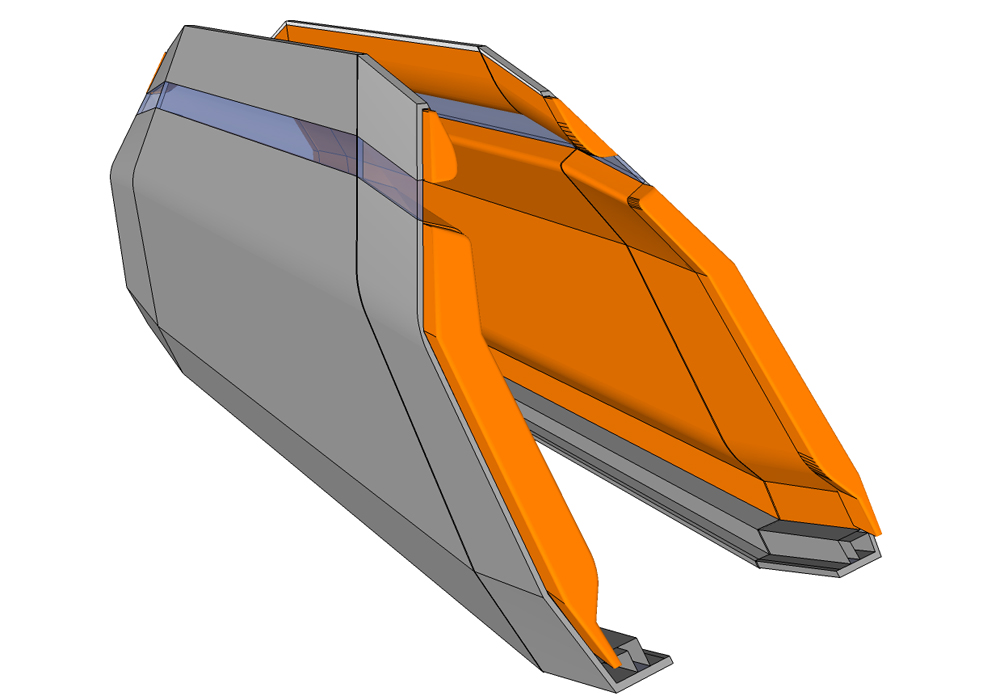

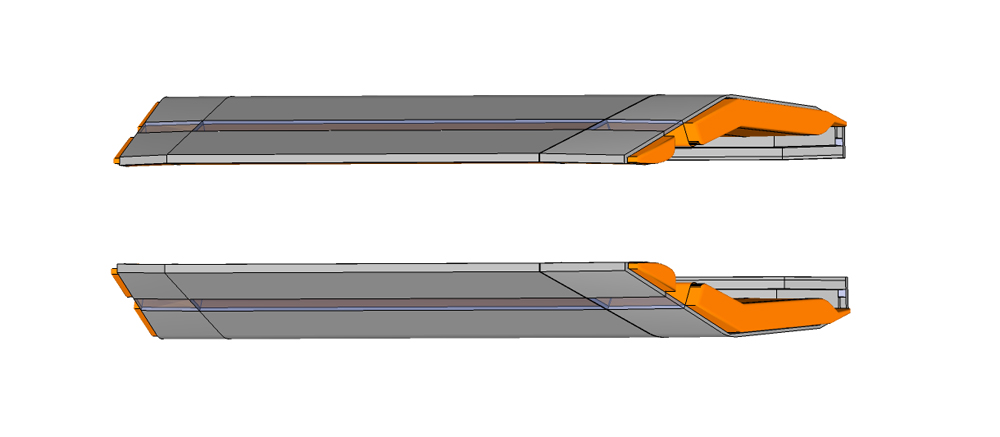

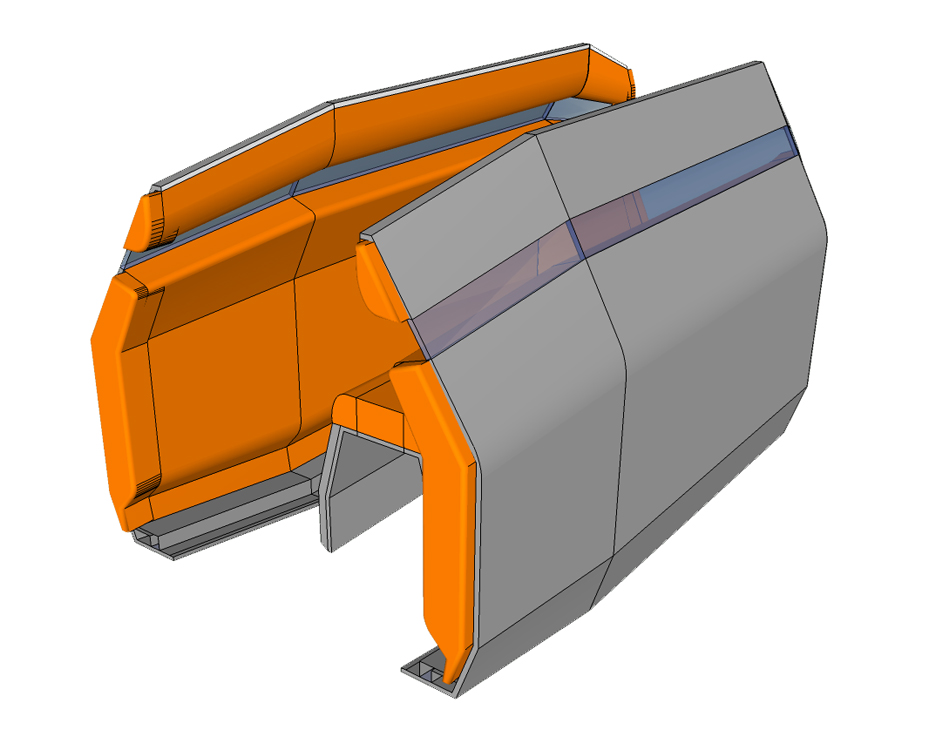

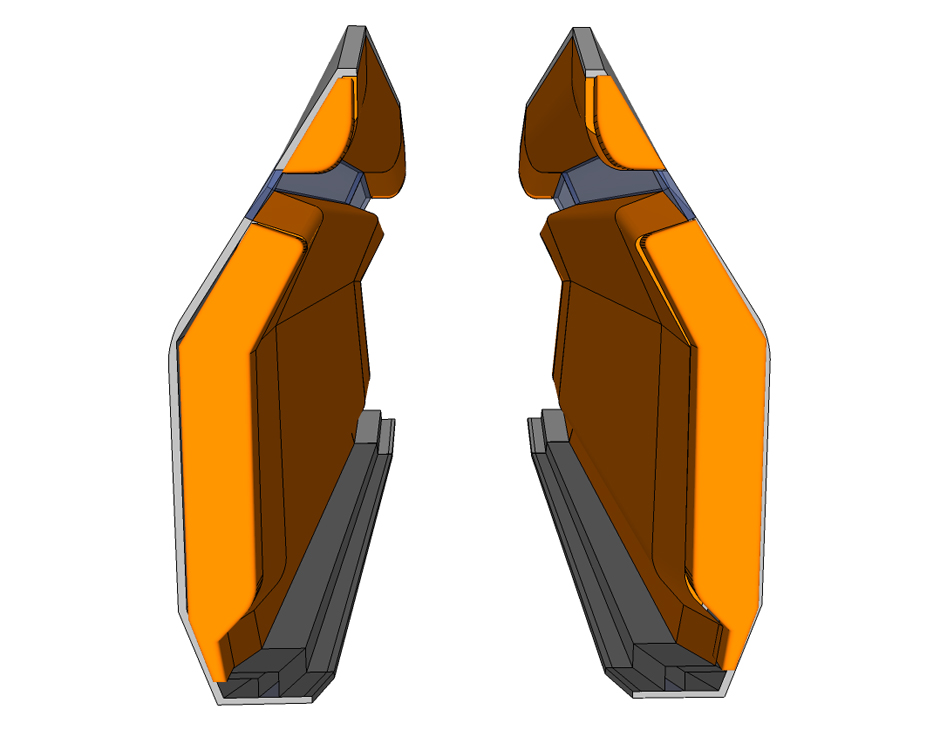

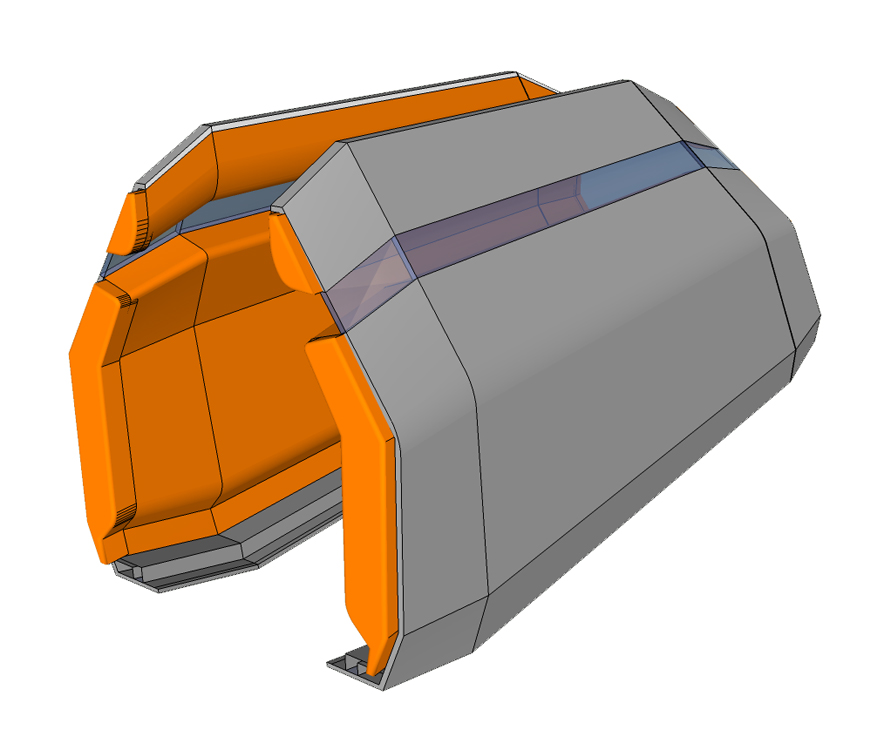

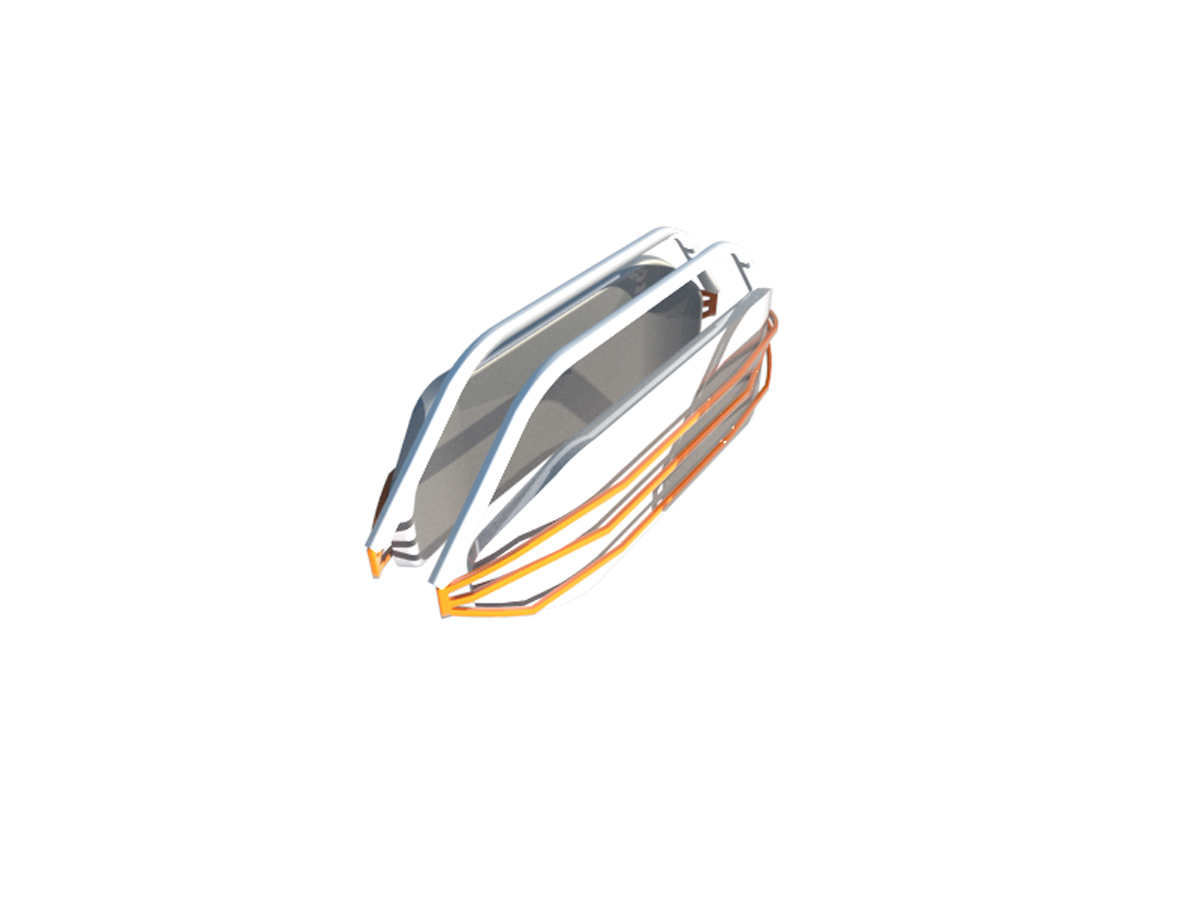

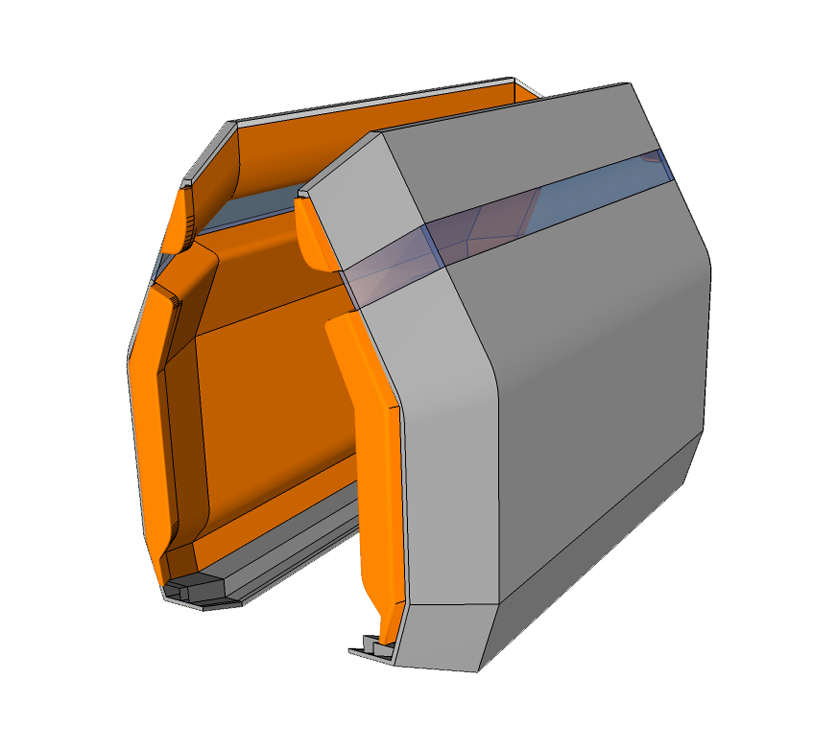

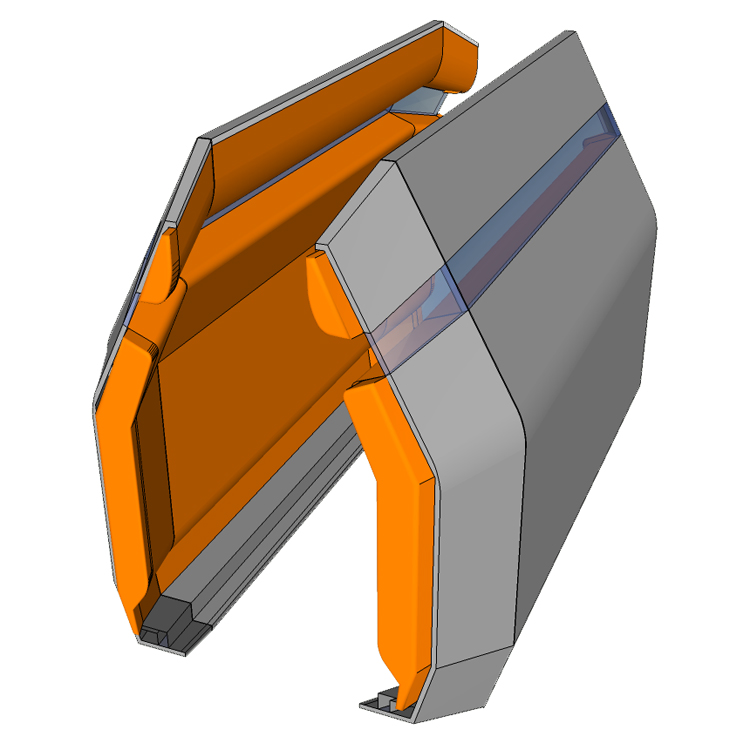

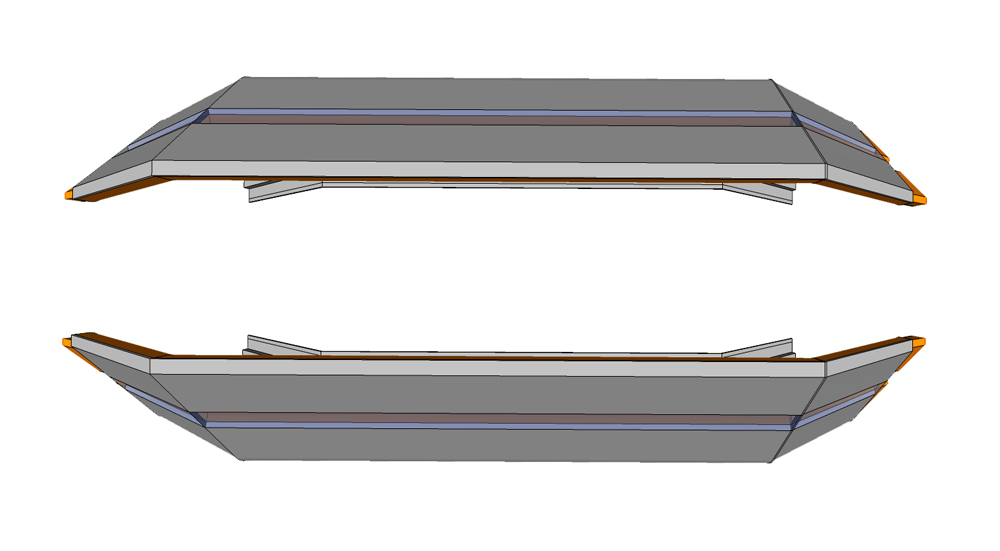

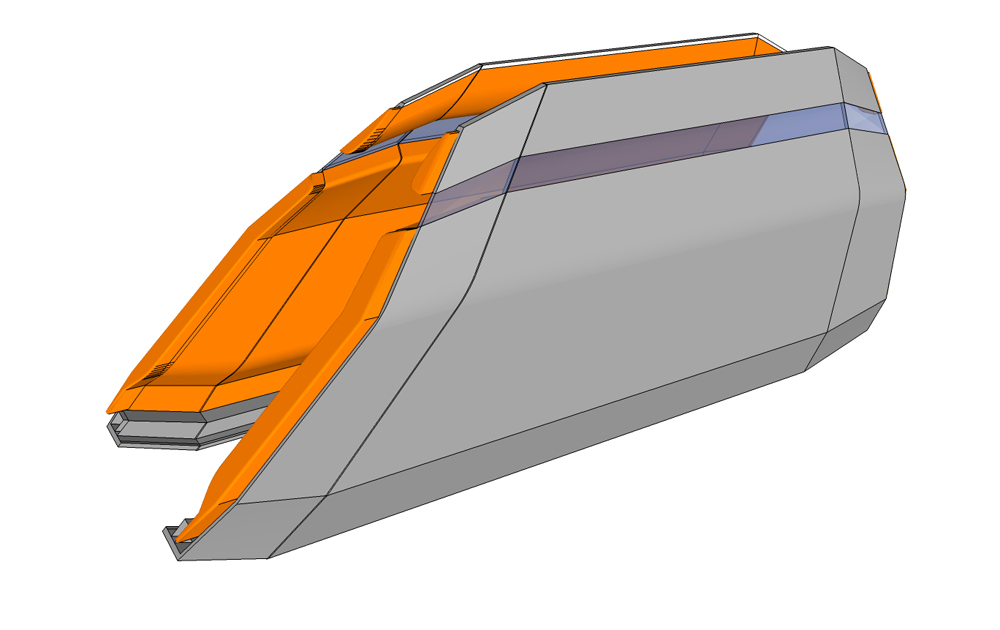

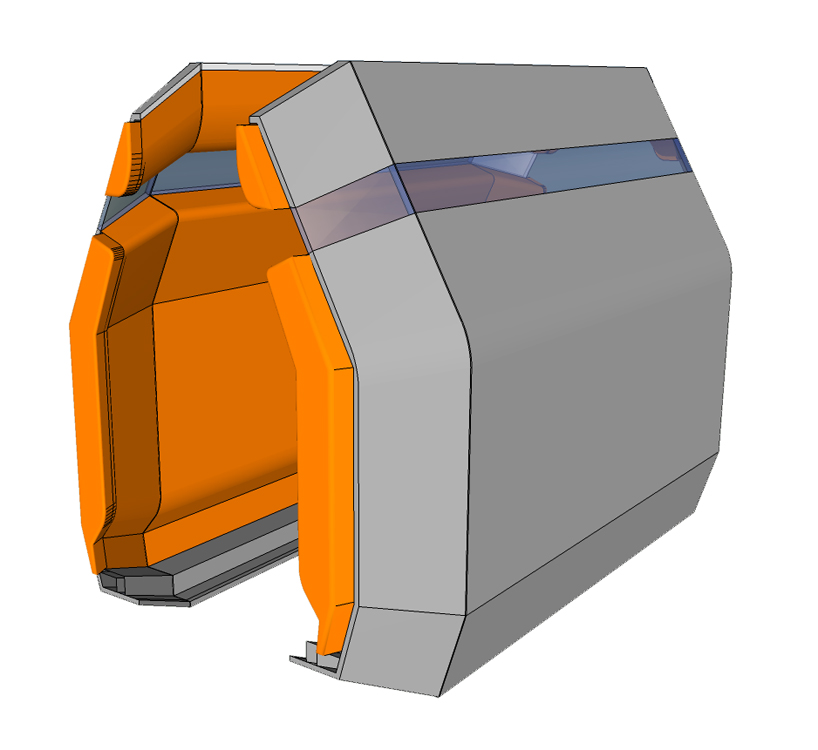

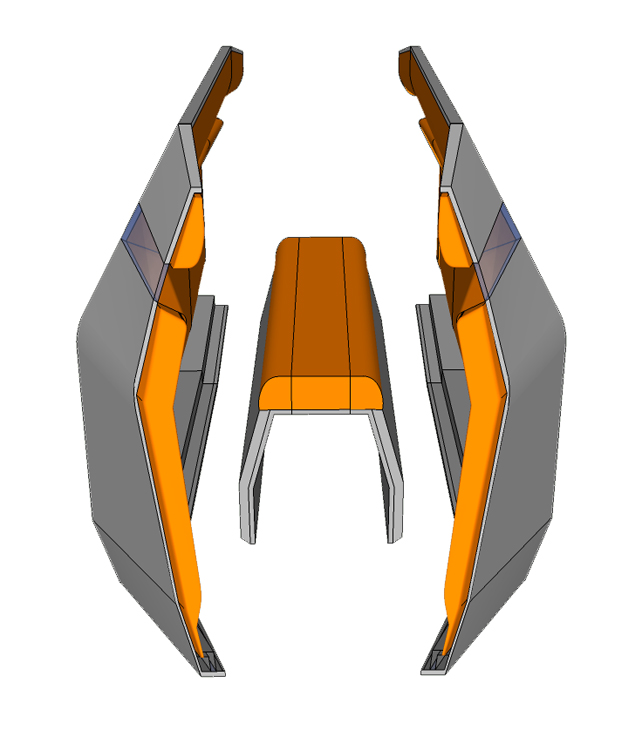

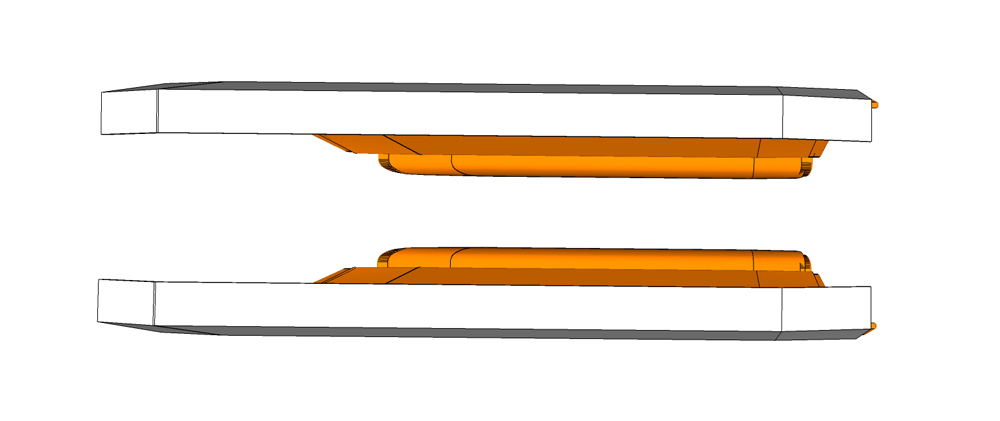

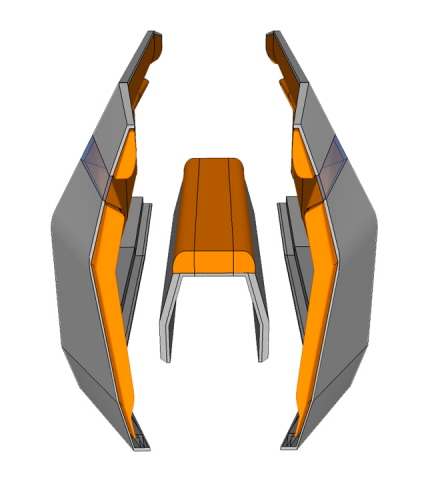

representation of the protective shells side only

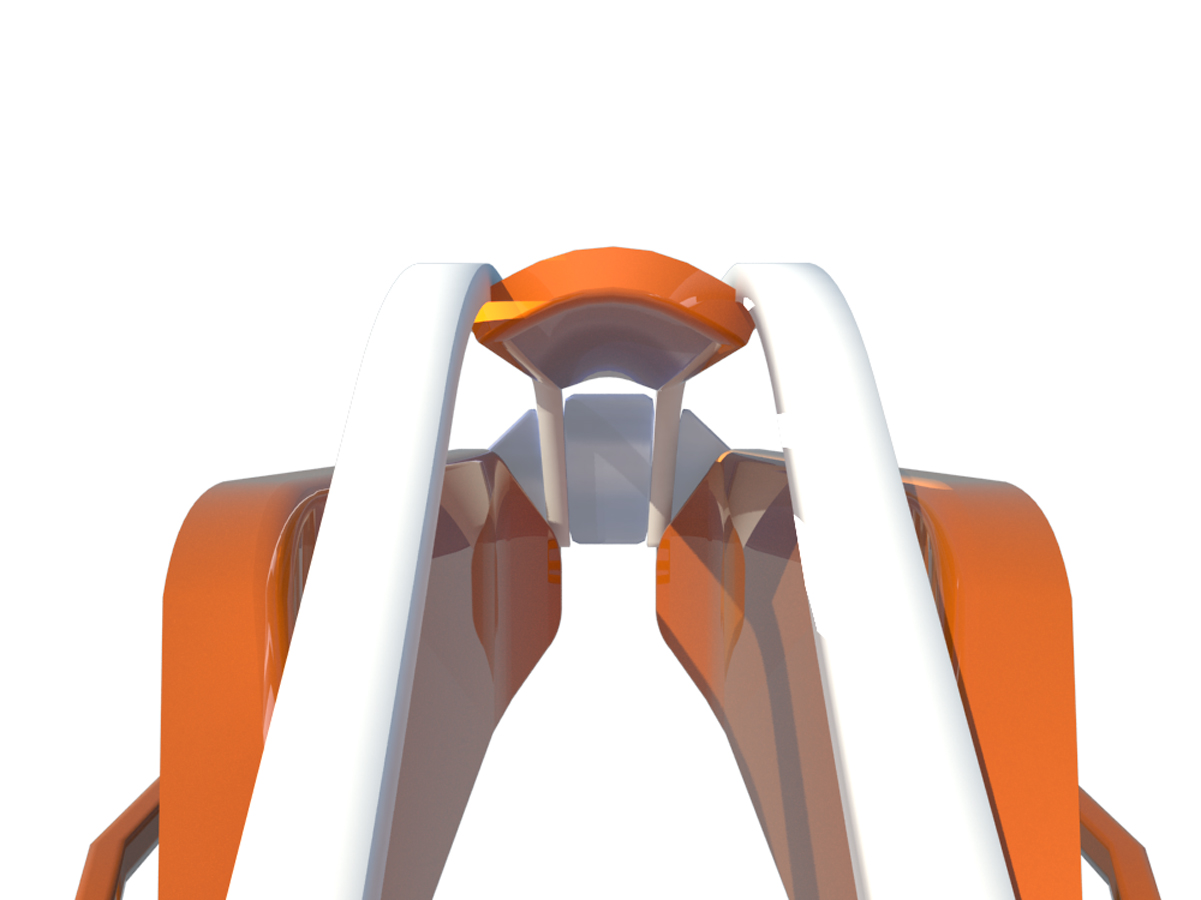

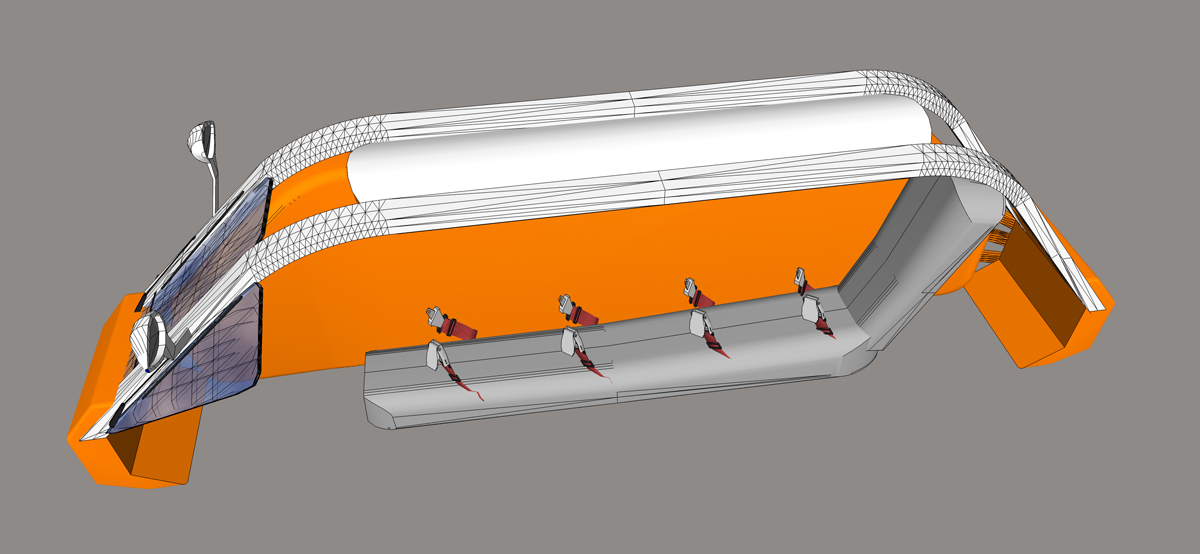

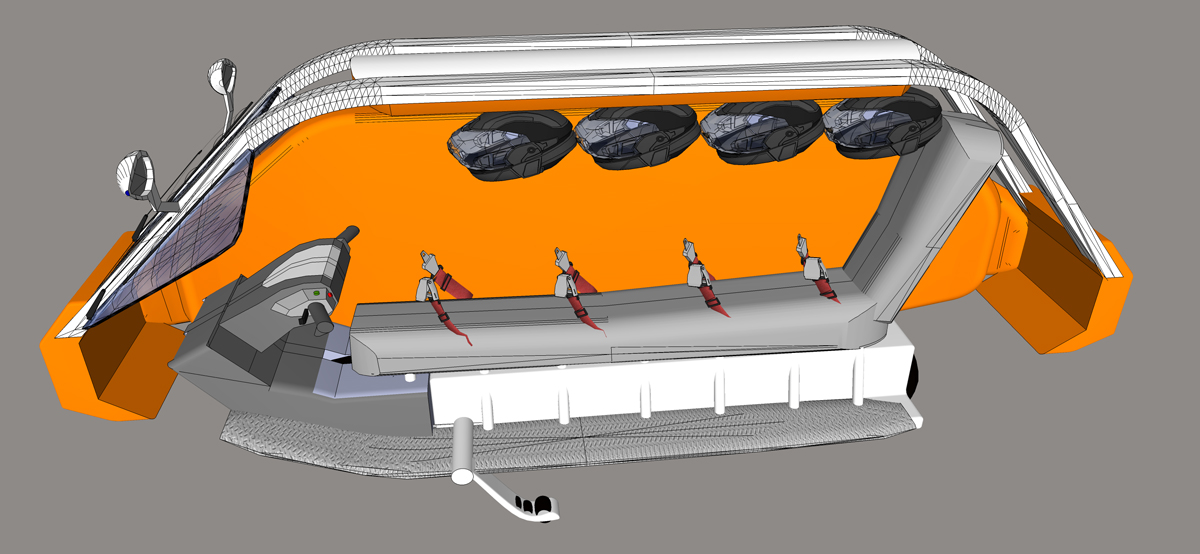

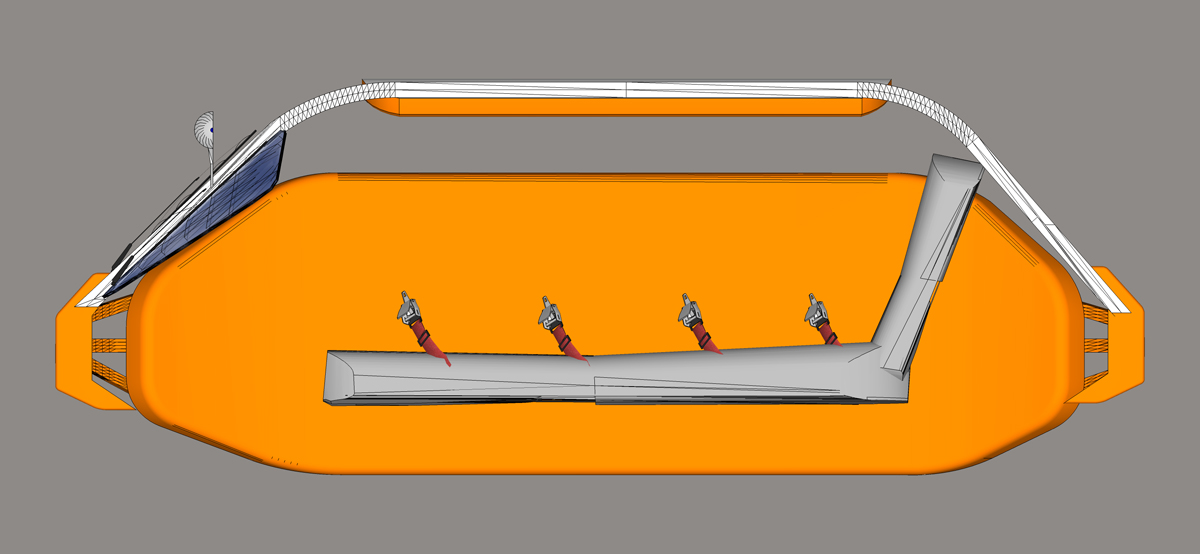

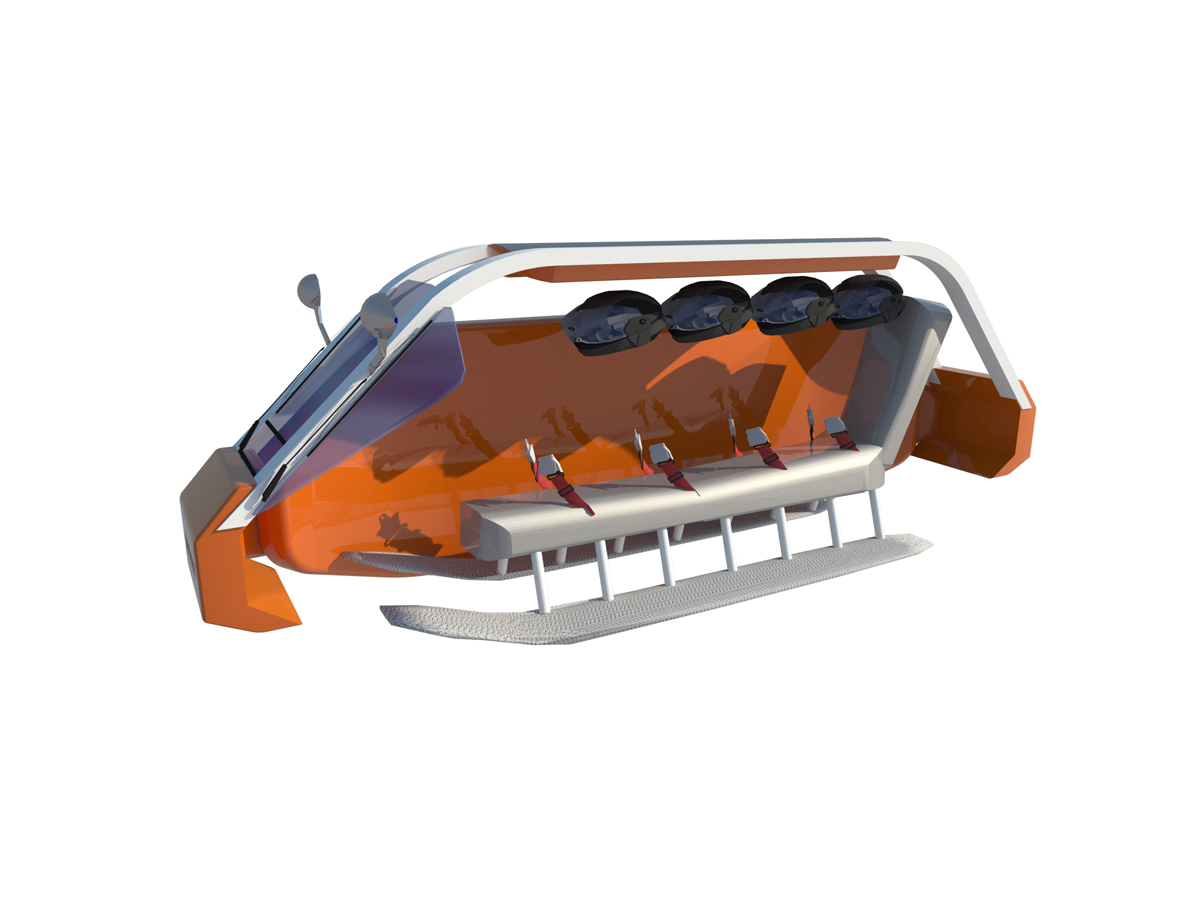

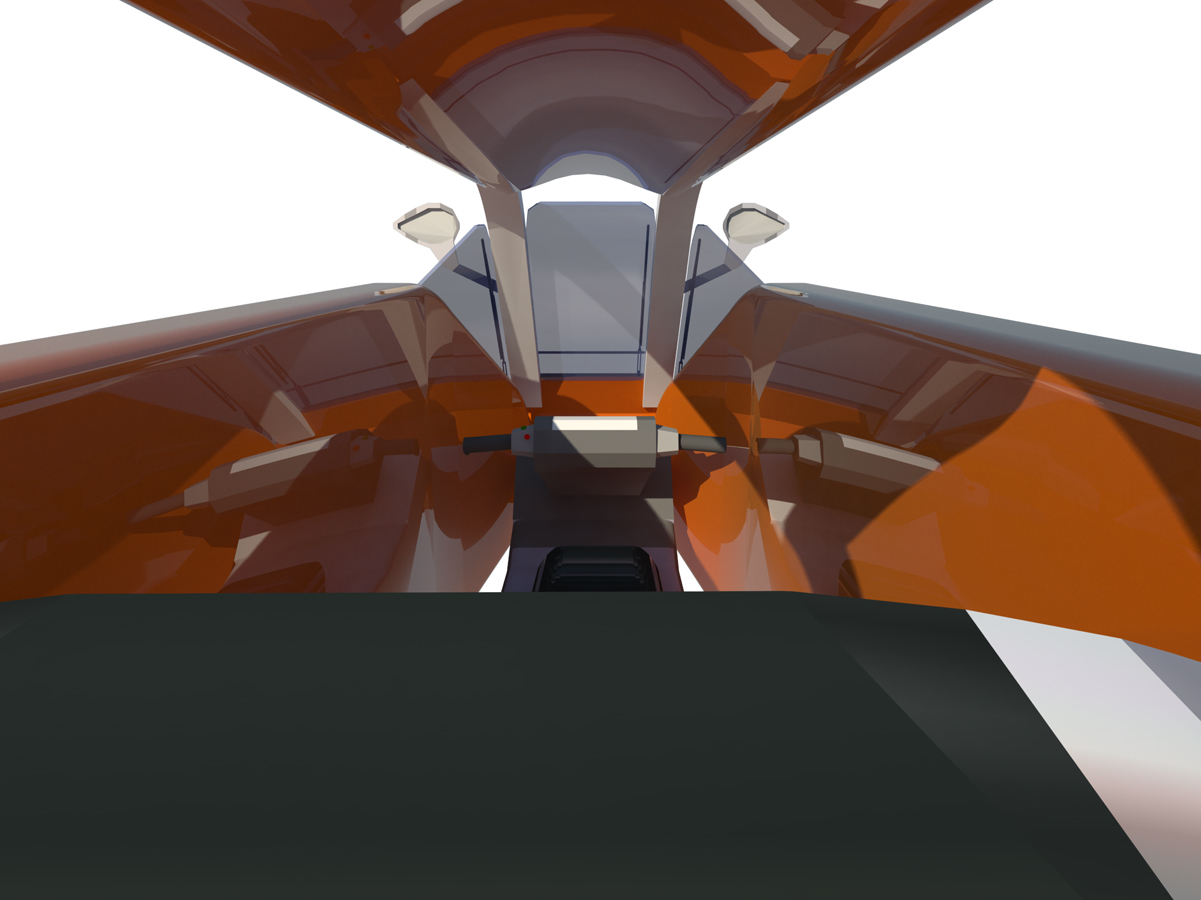

representation of the vehicle interior

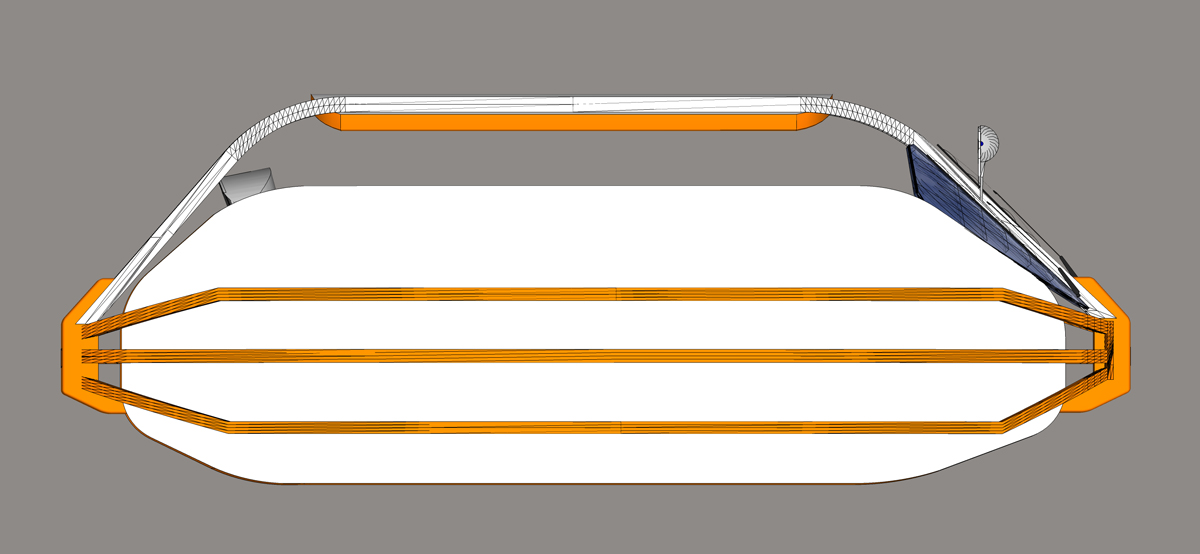

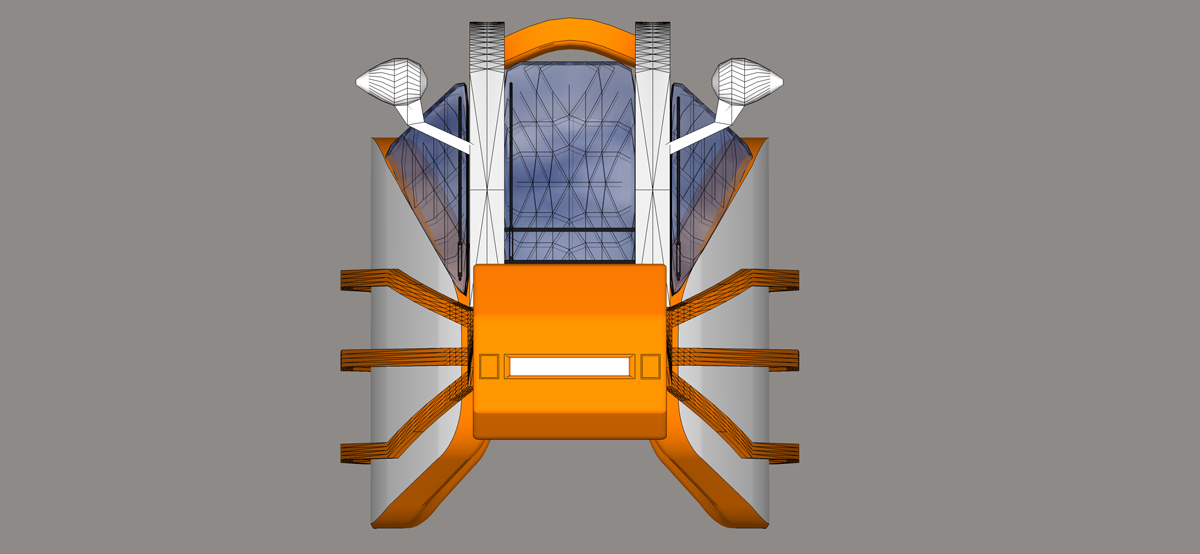

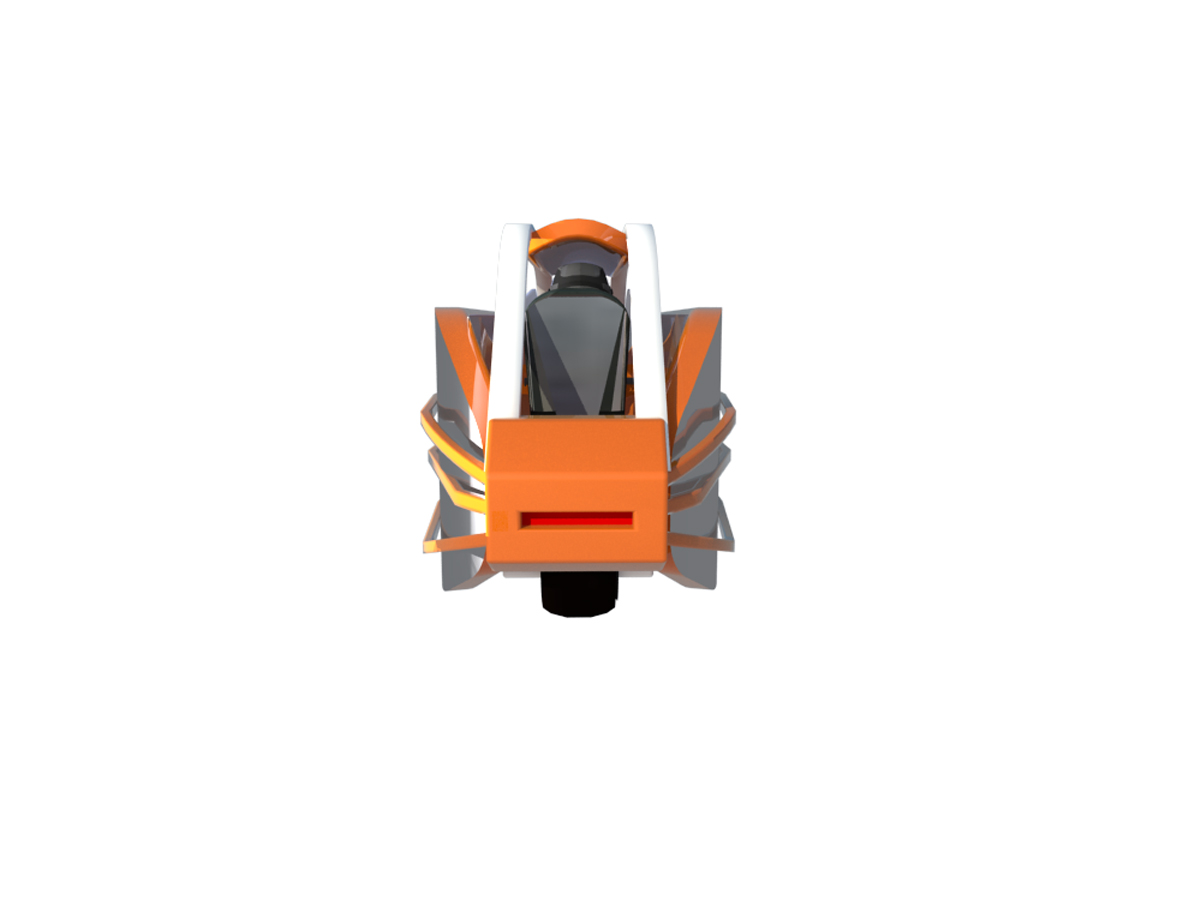

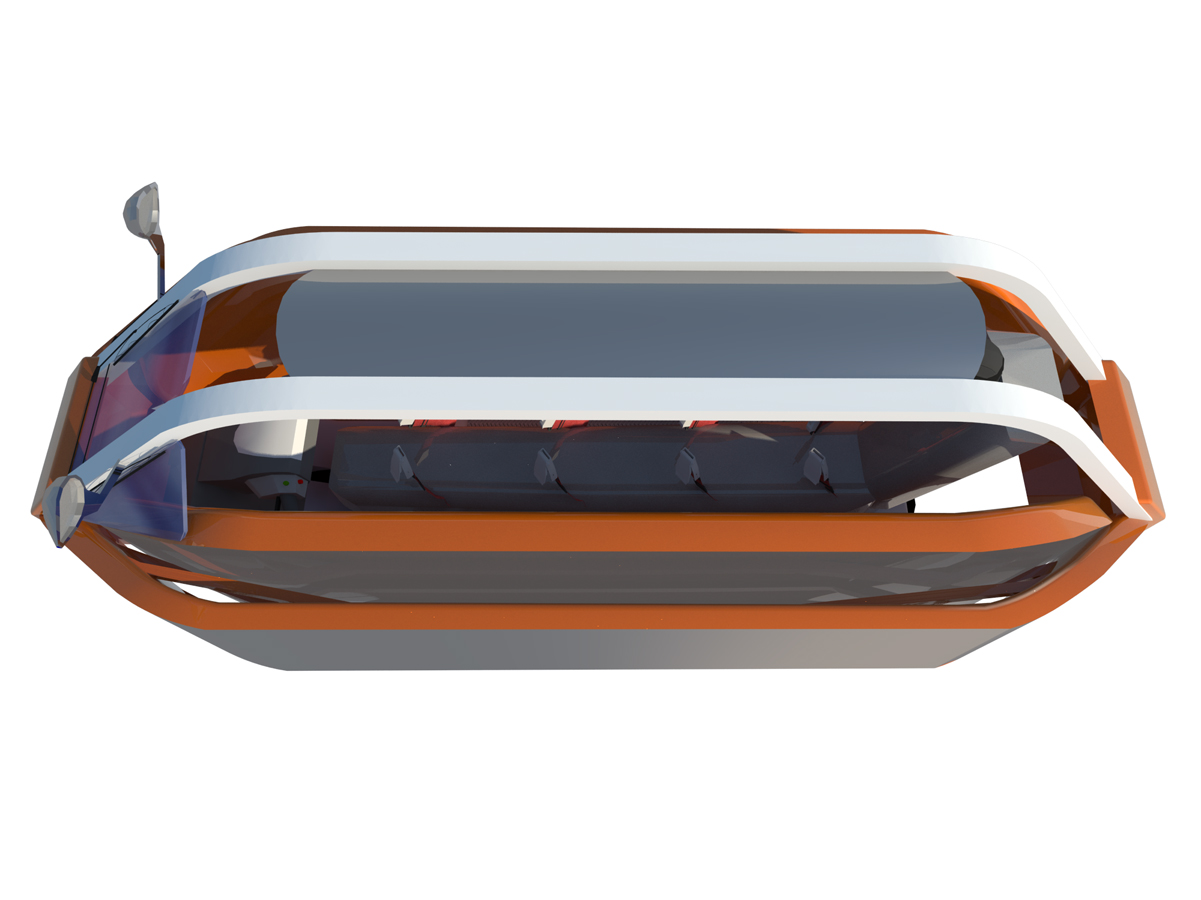

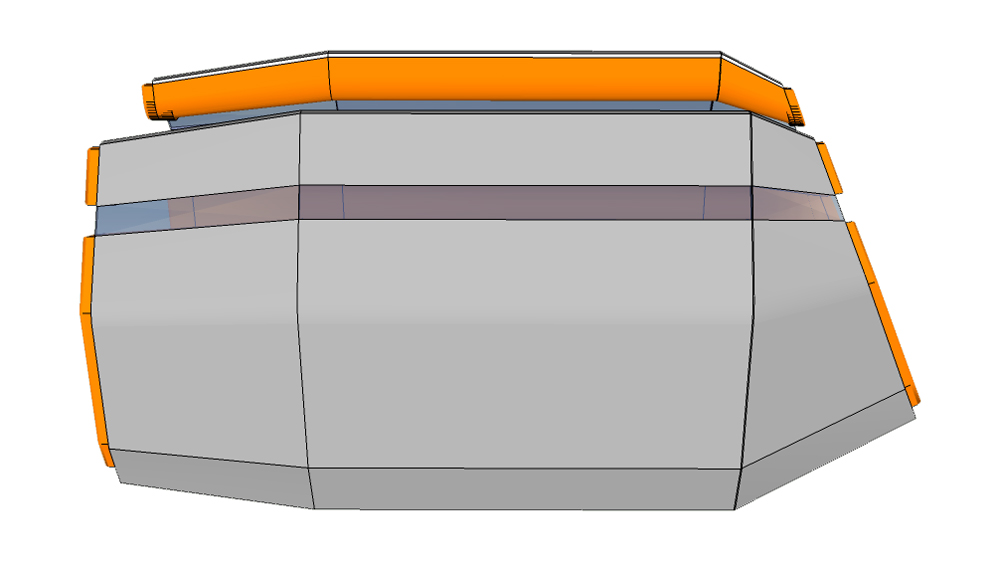

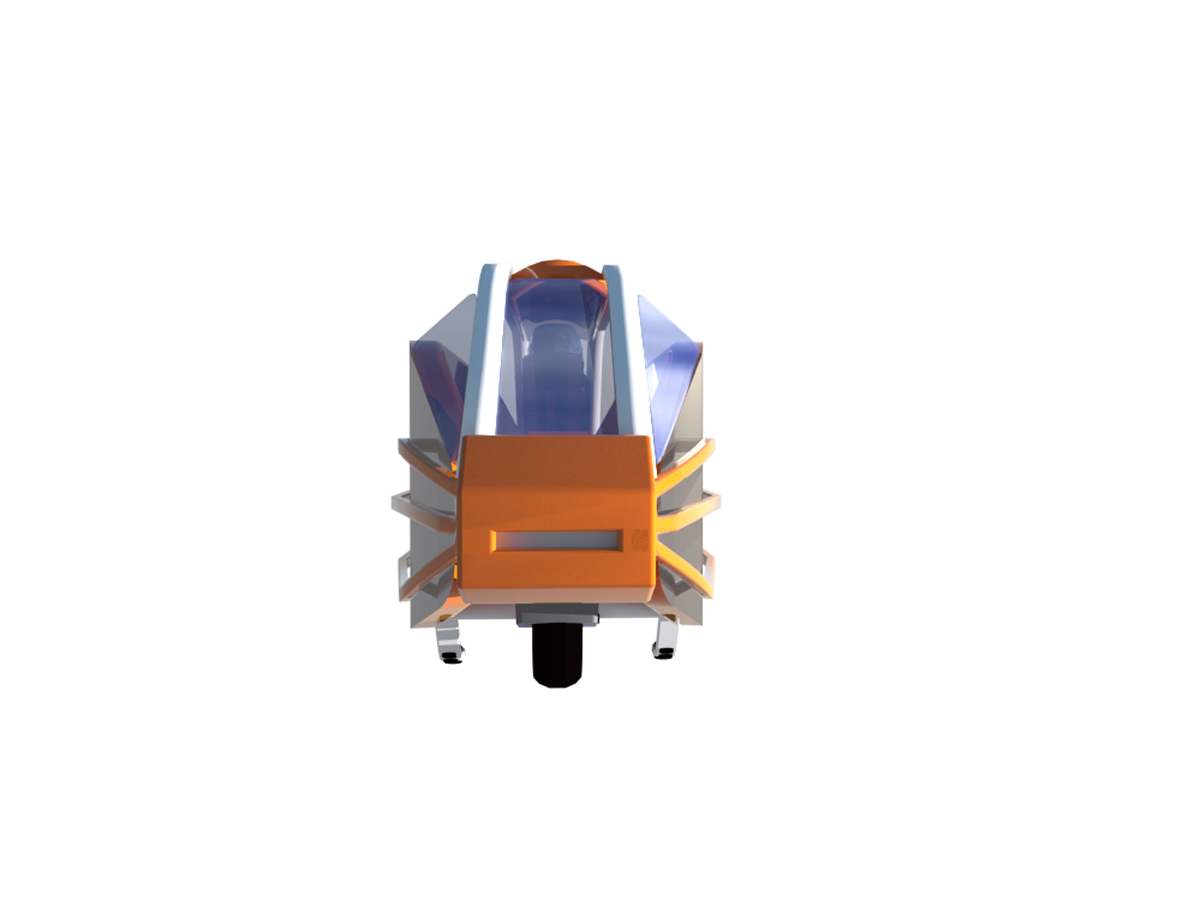

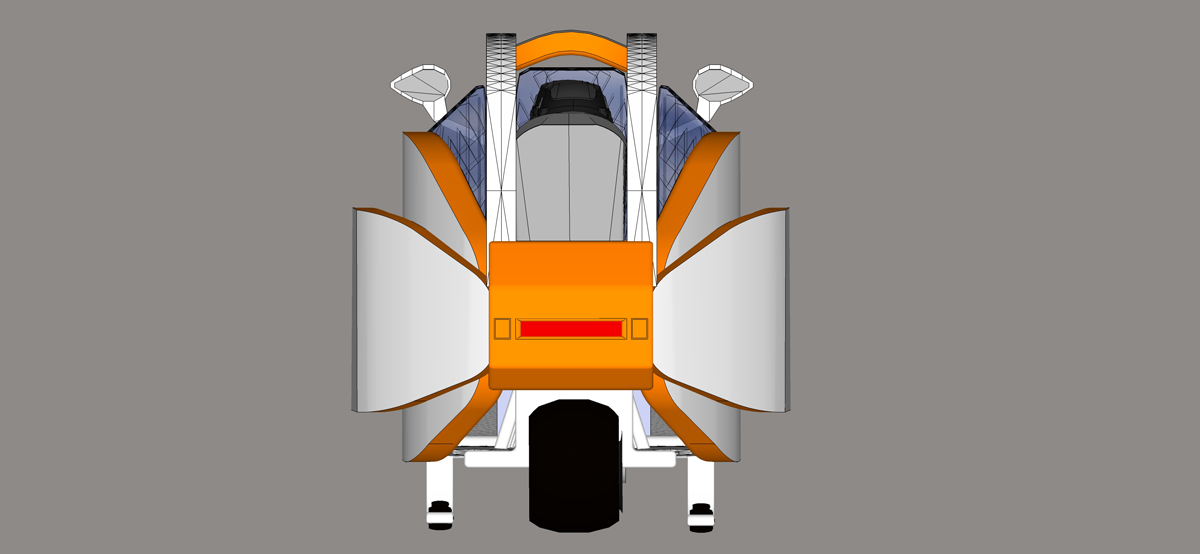

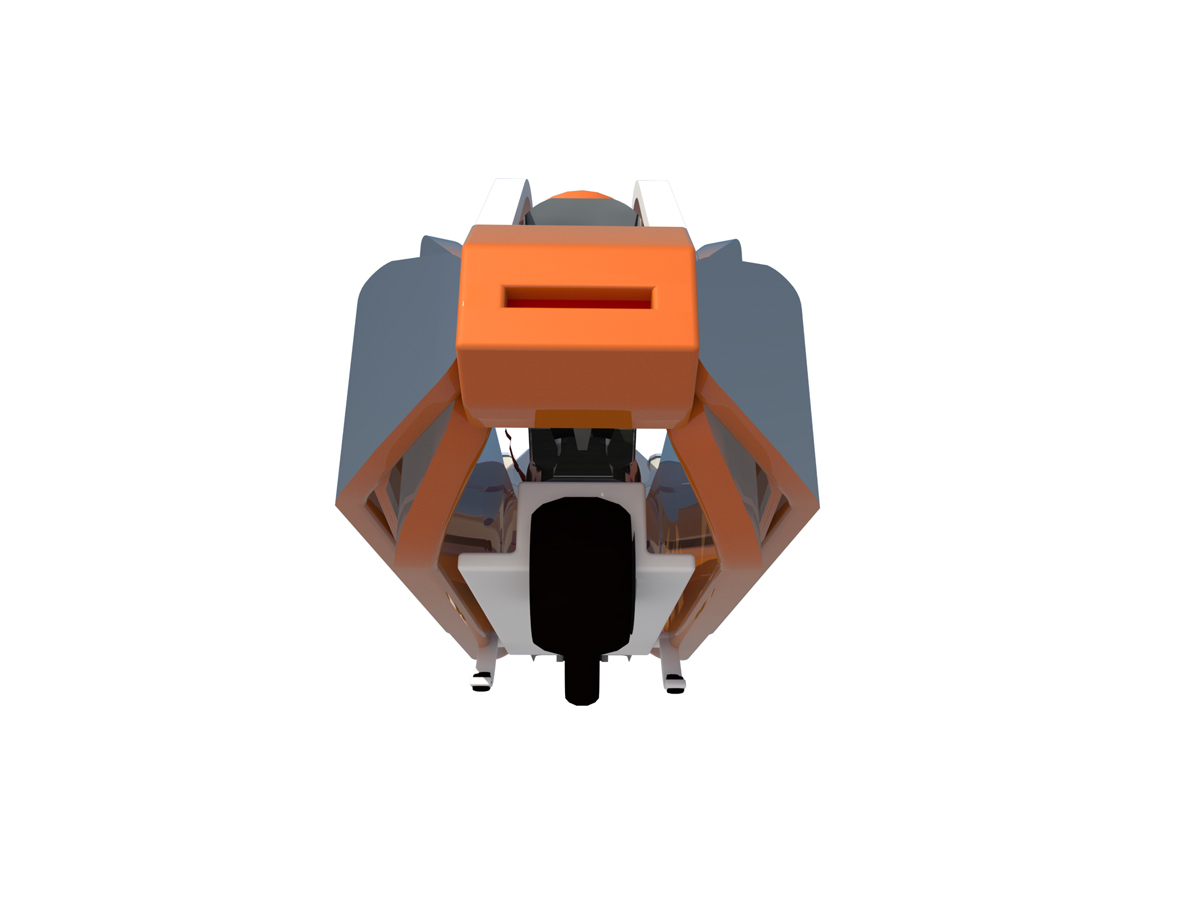

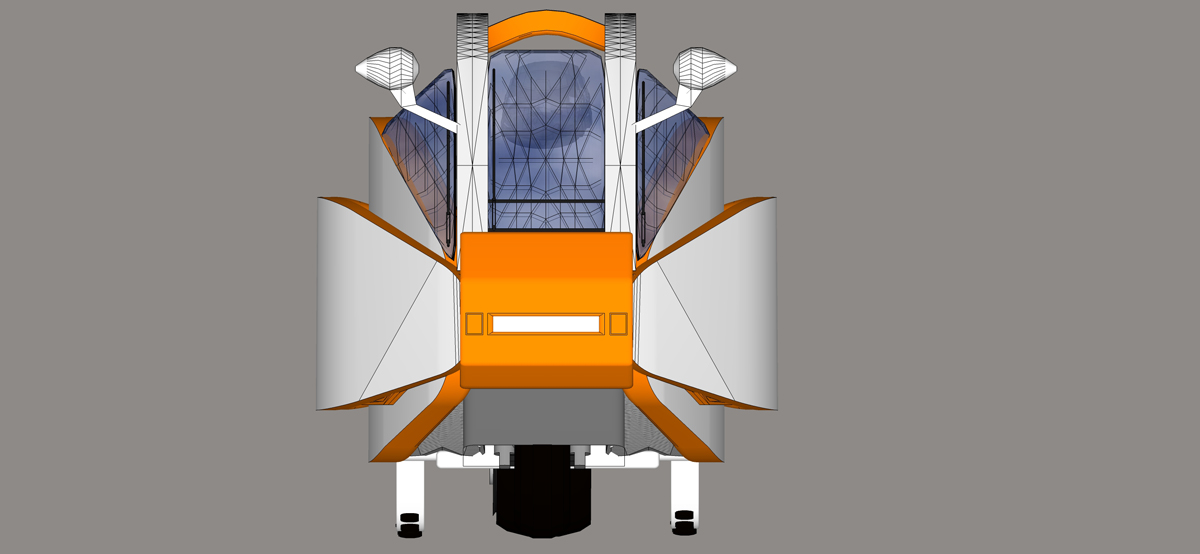

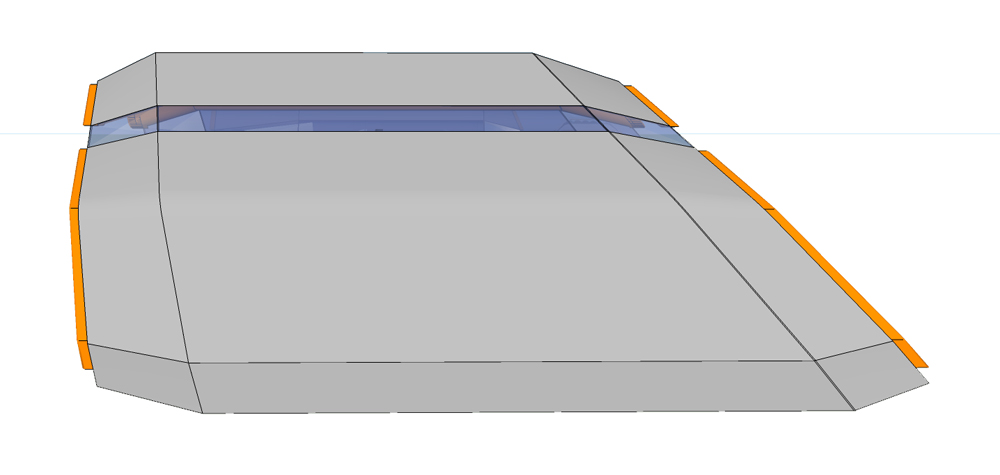

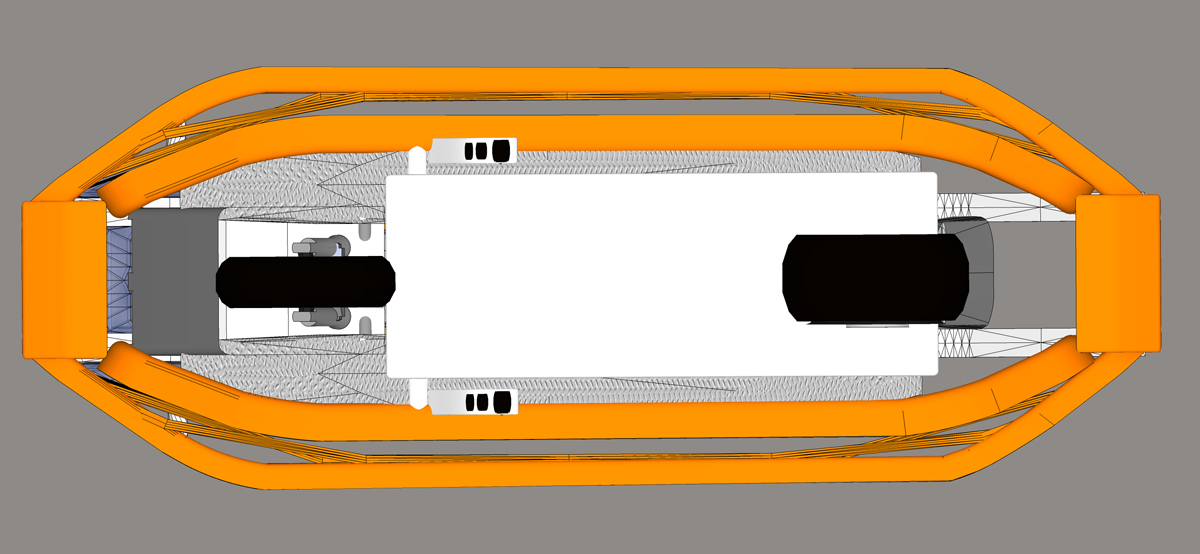

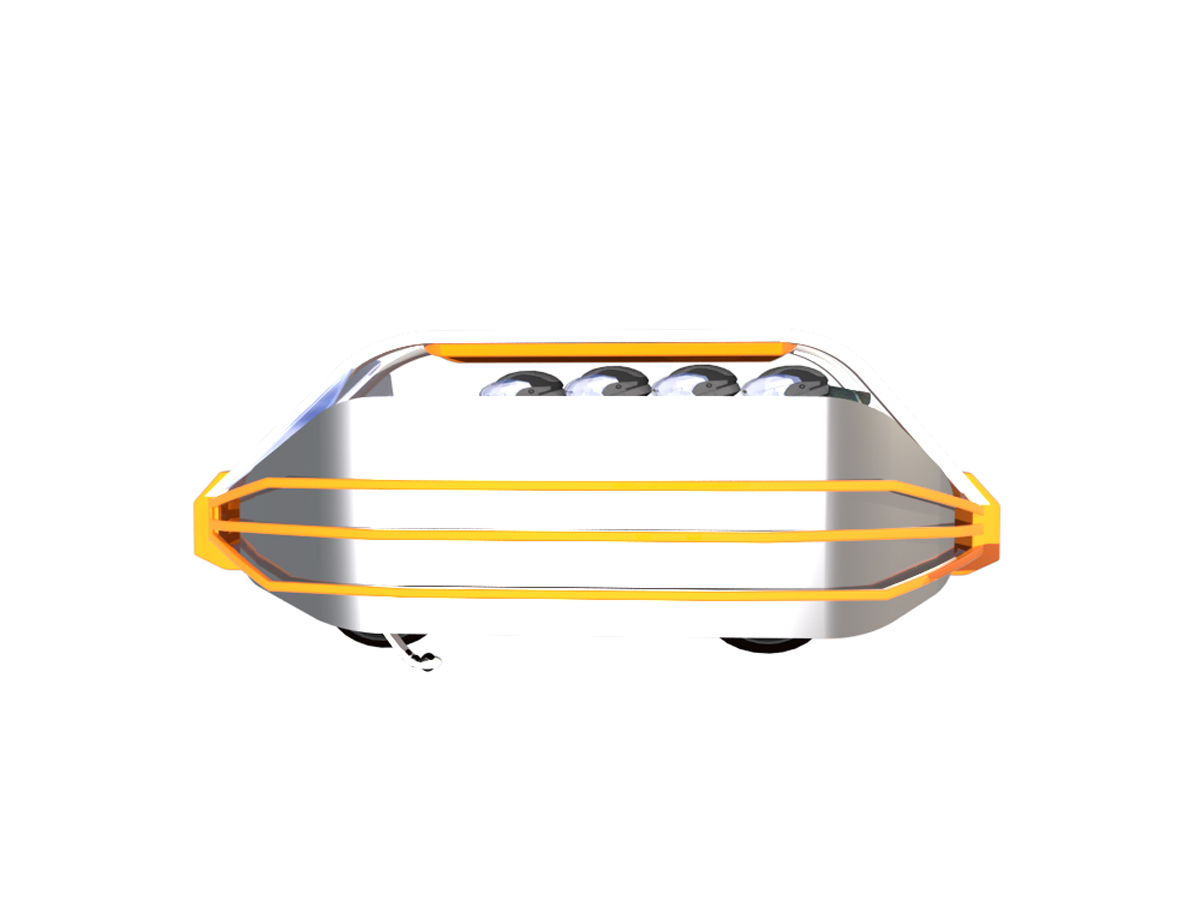

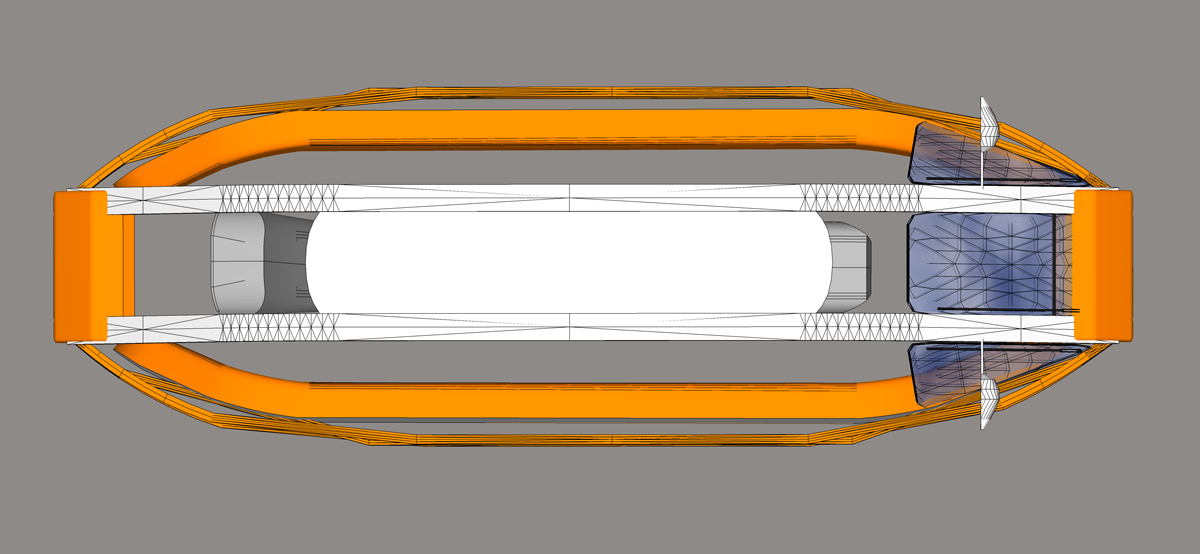

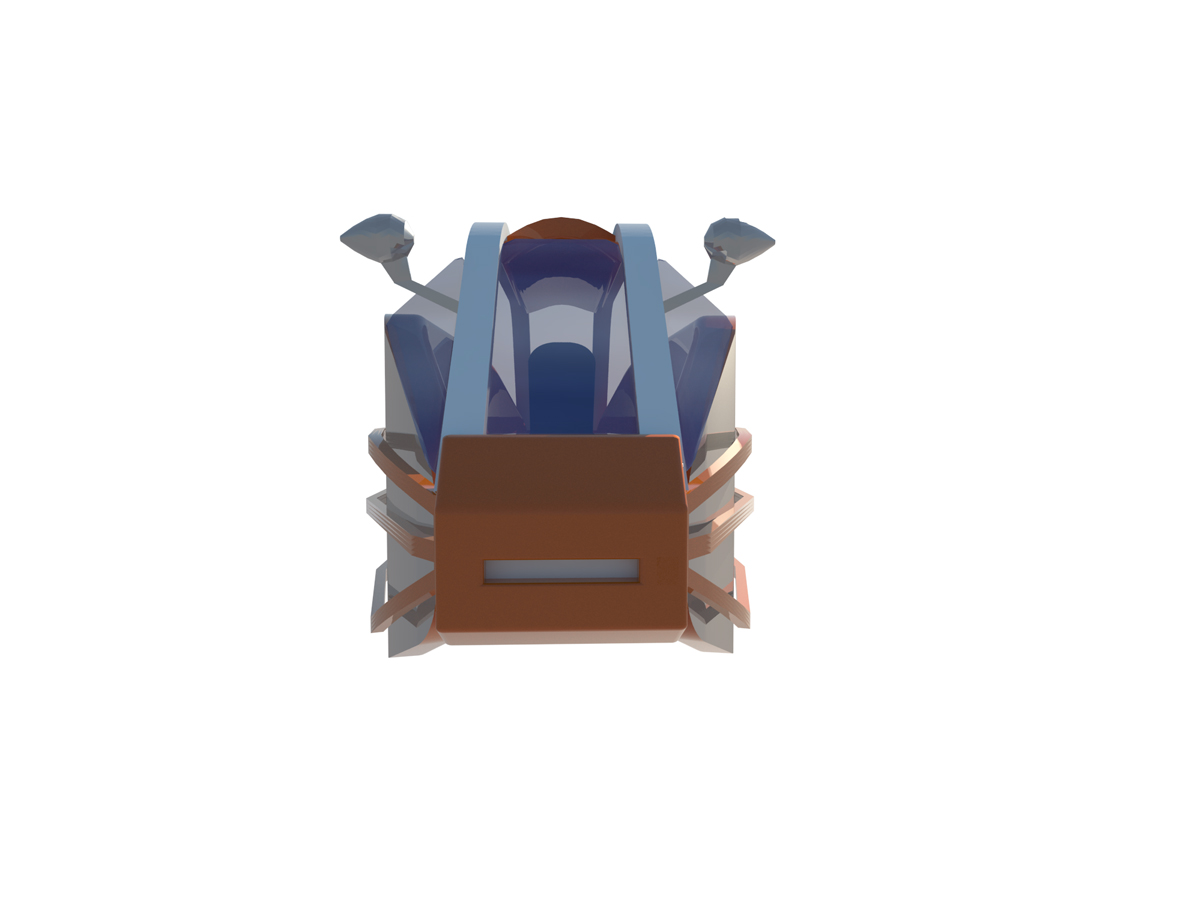

2d representation view :  front, rear; side, top, bottom

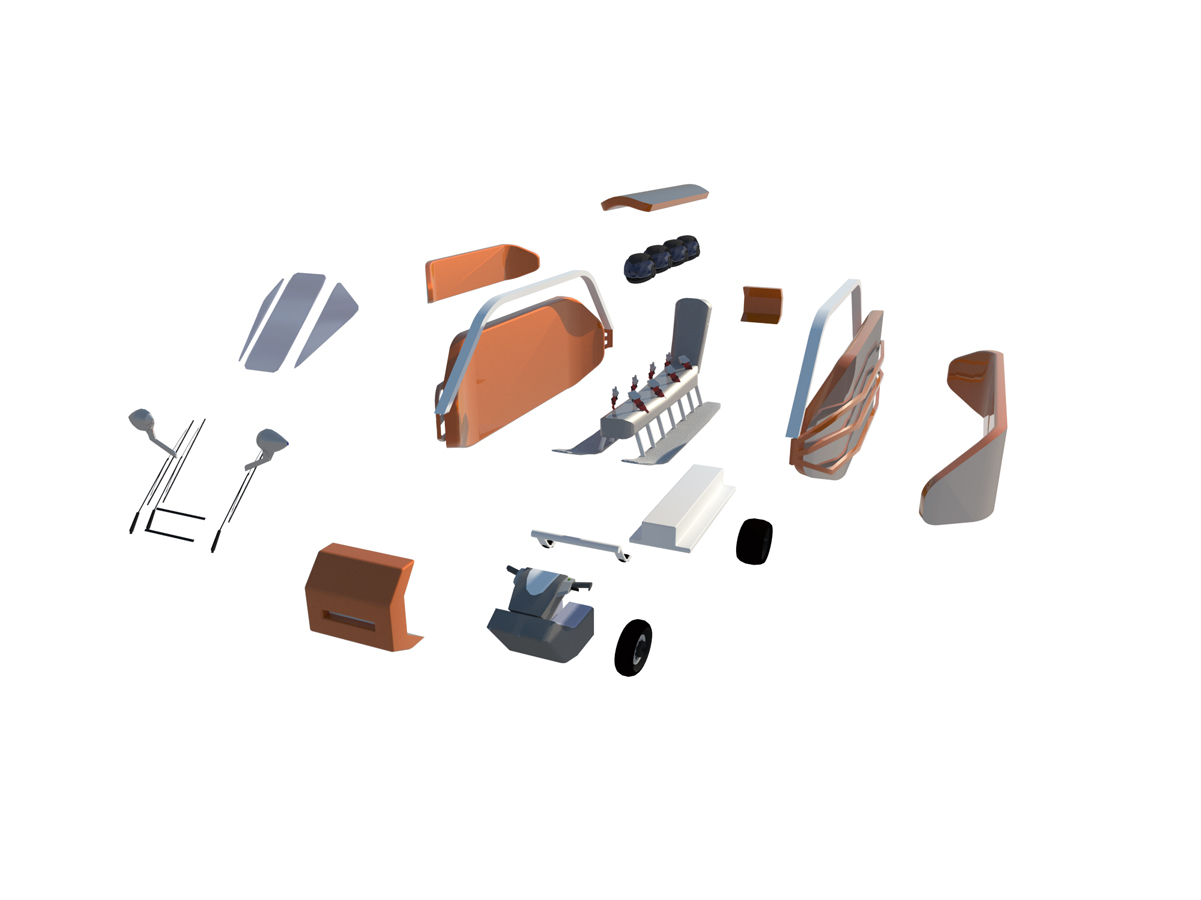

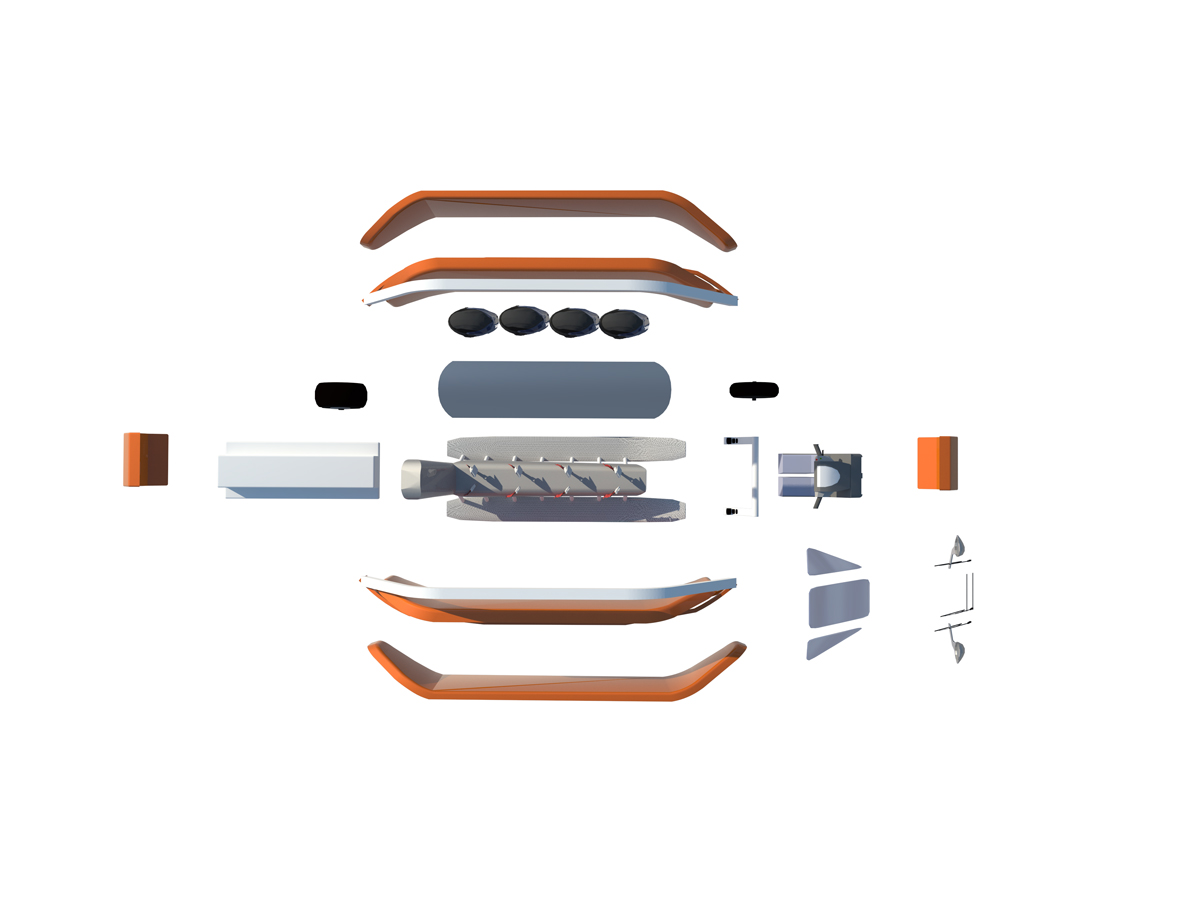

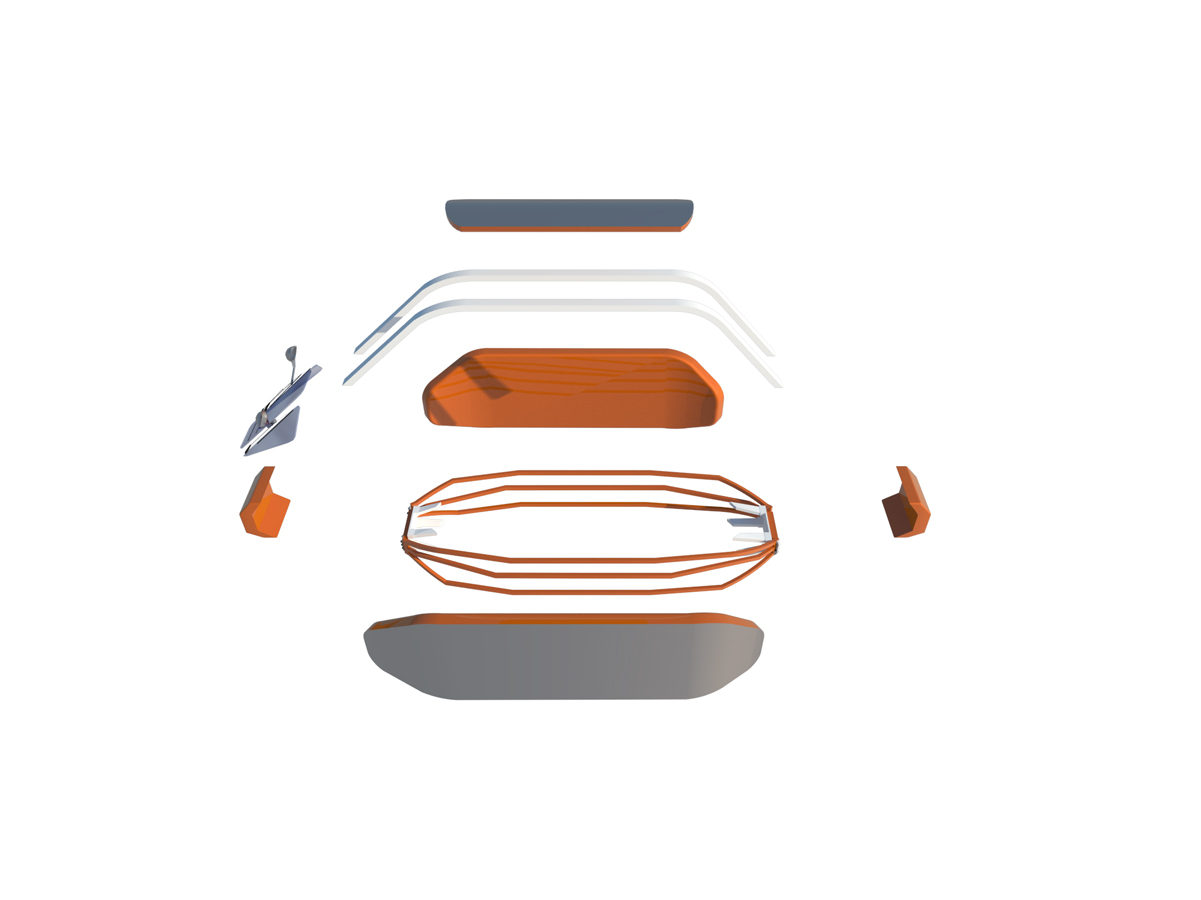

representation exploded to see the various component of the protection separated

options:

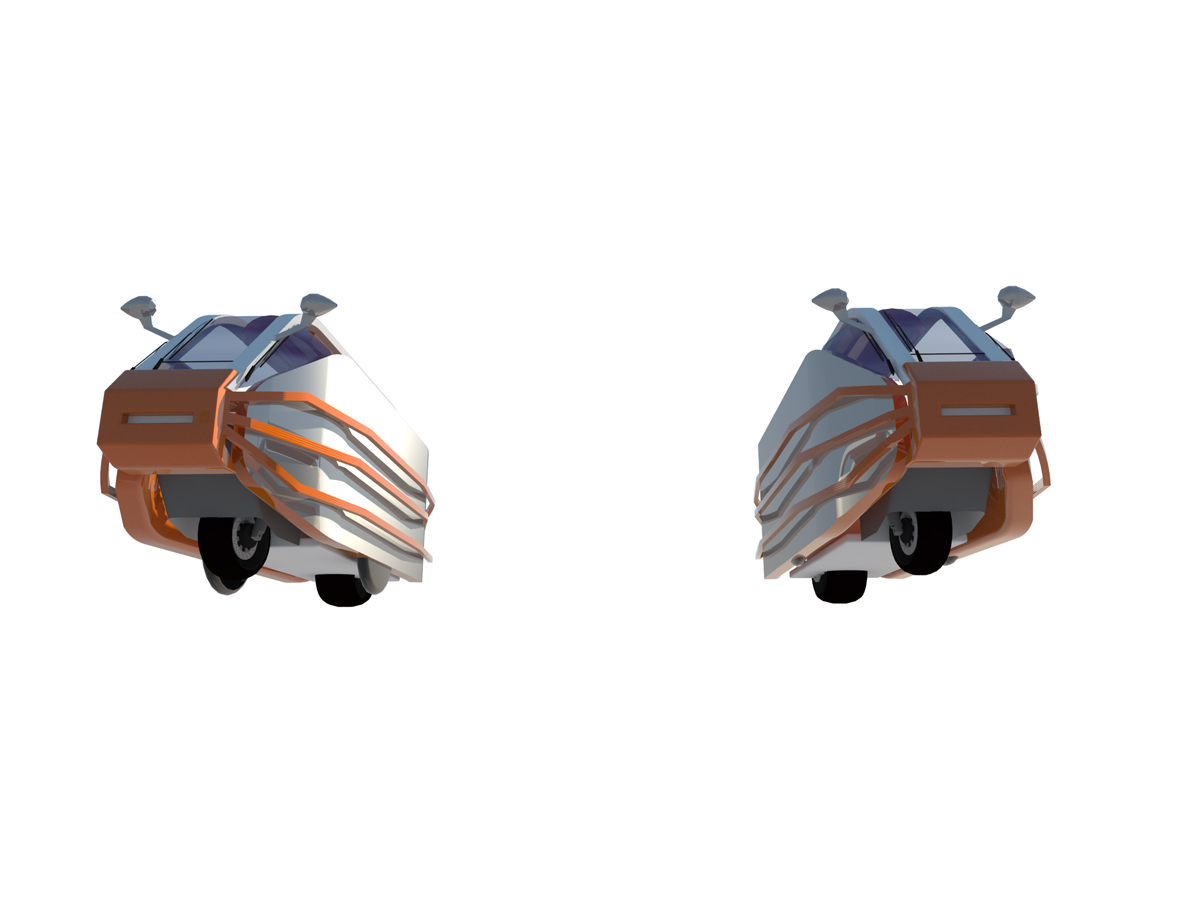

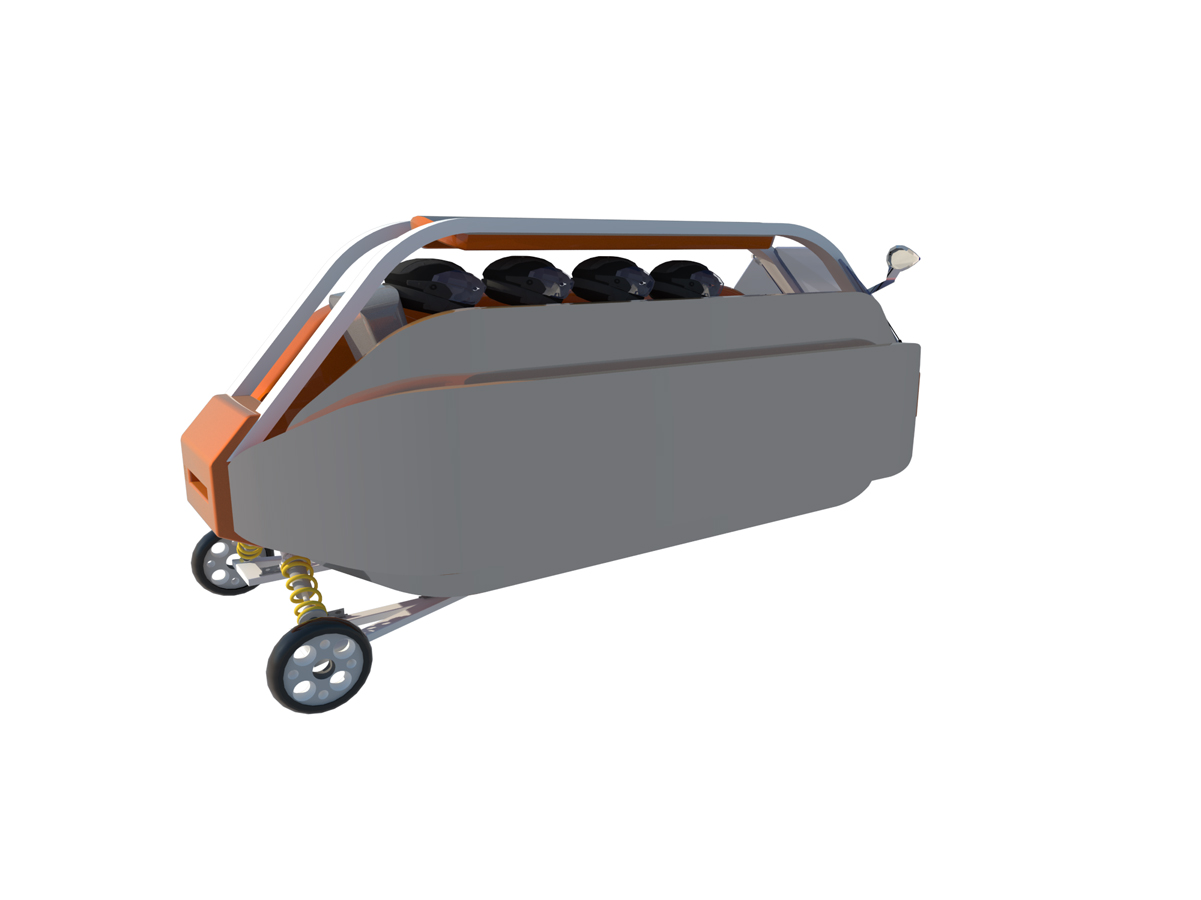

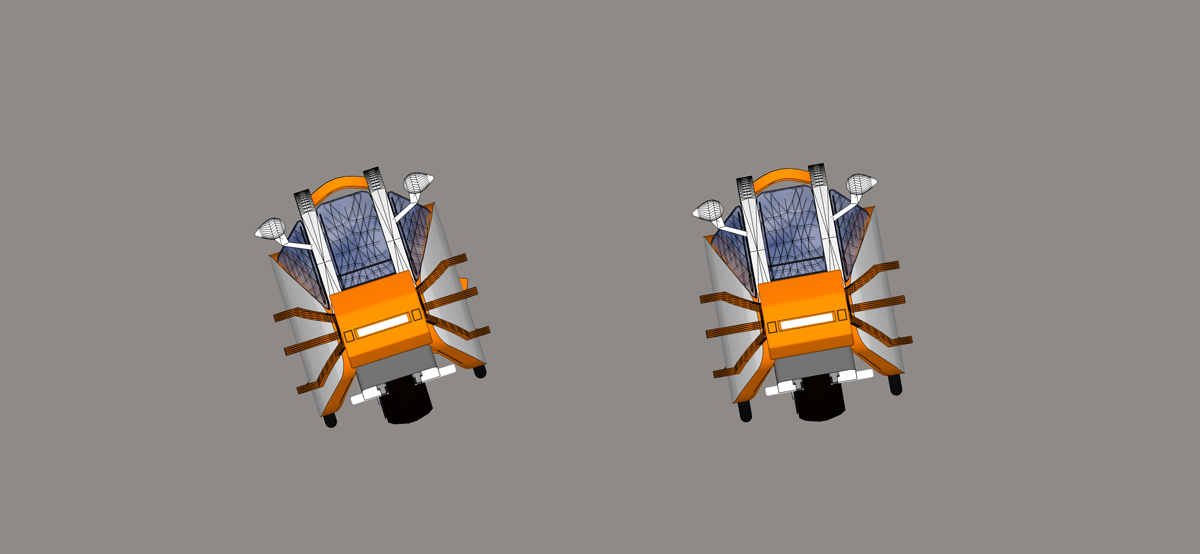

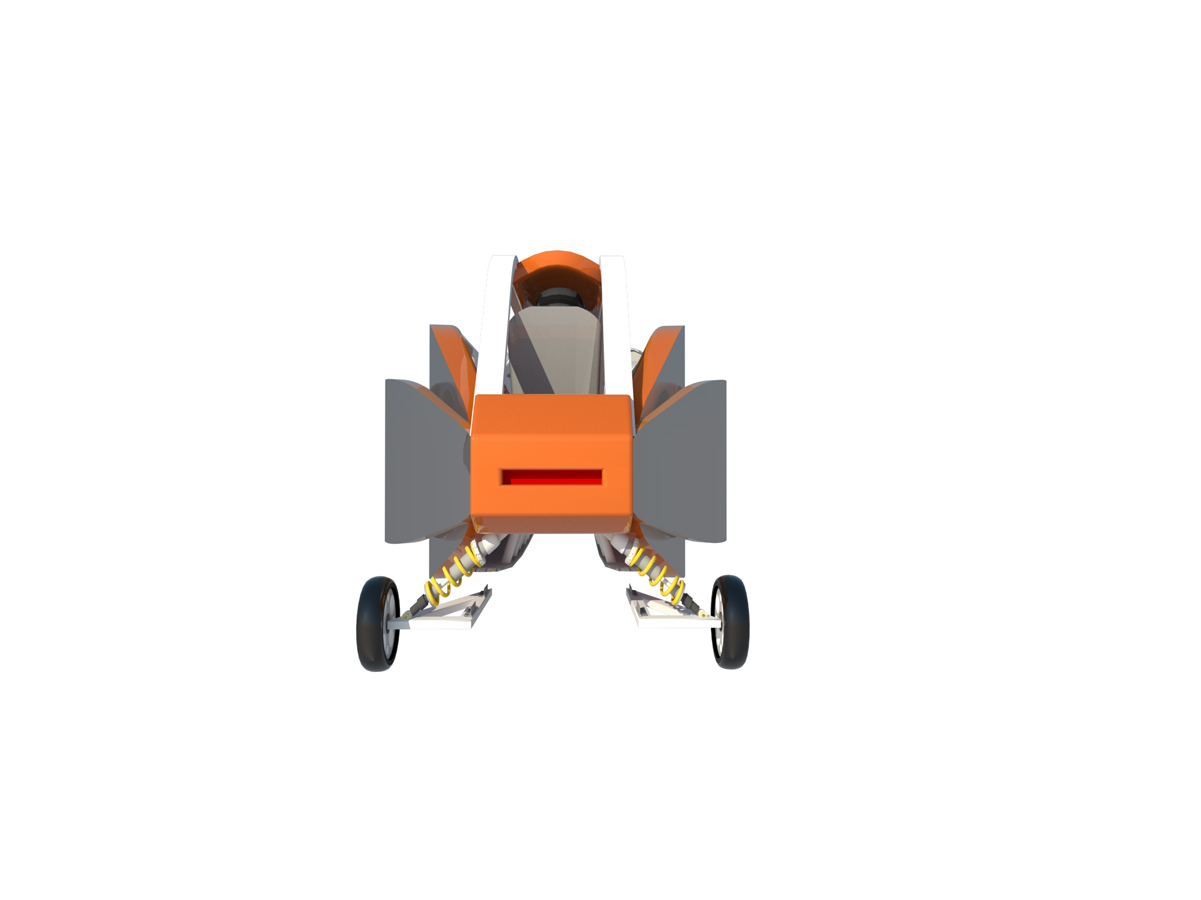

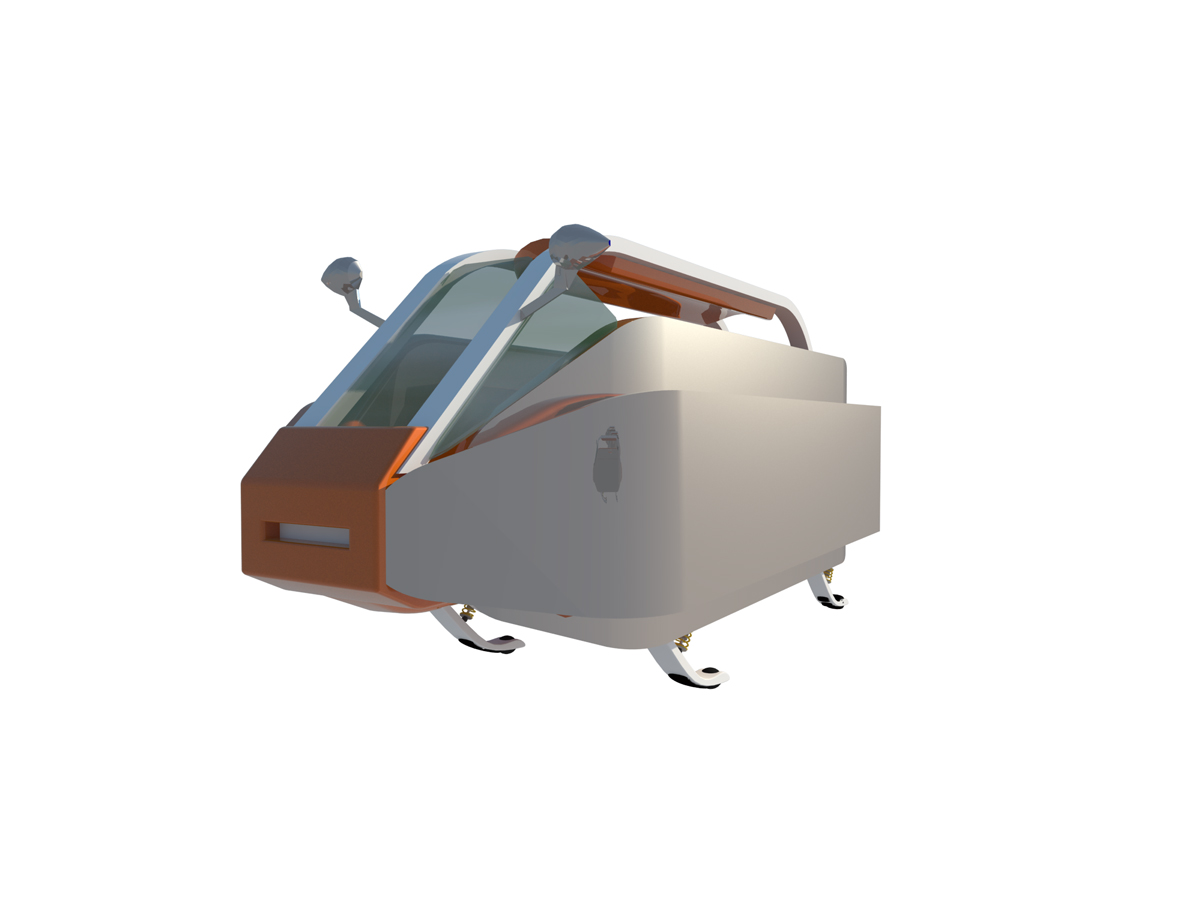

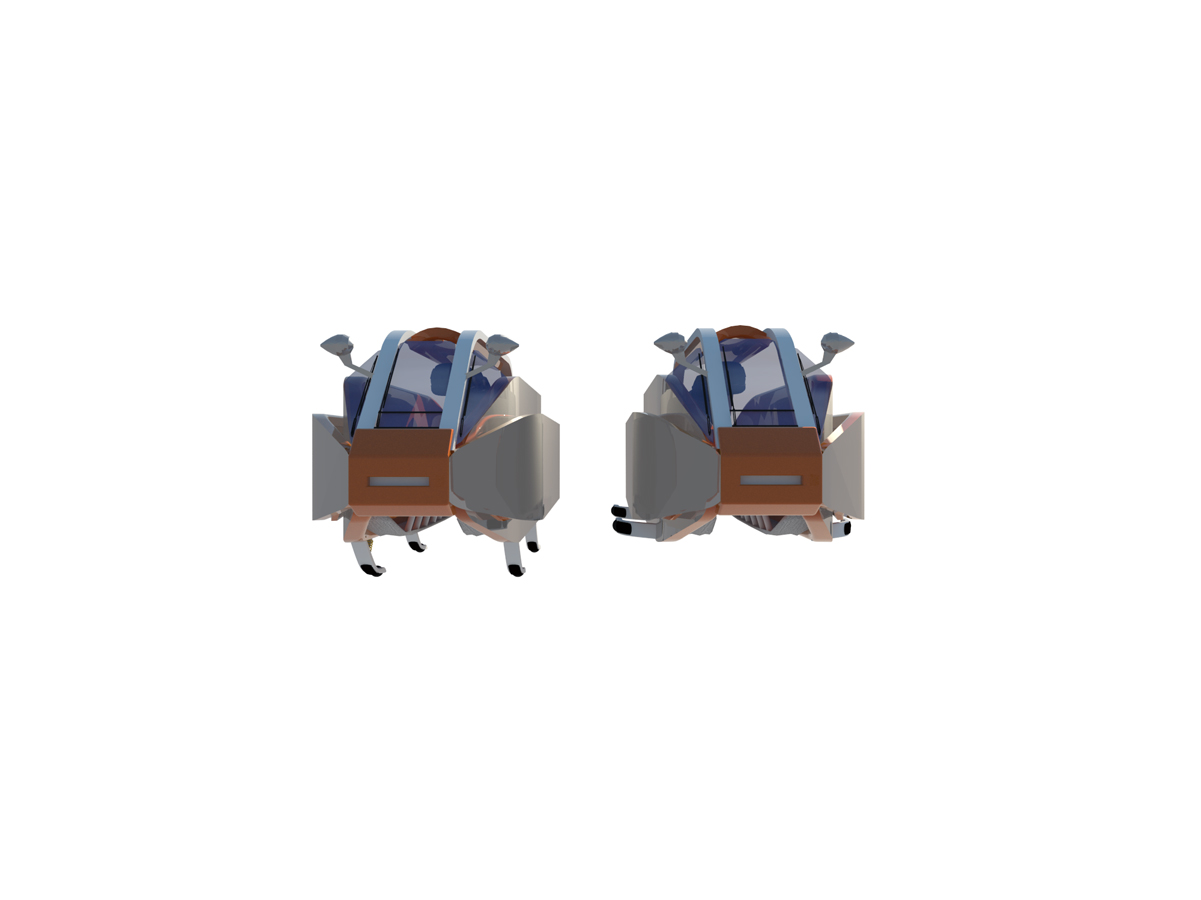

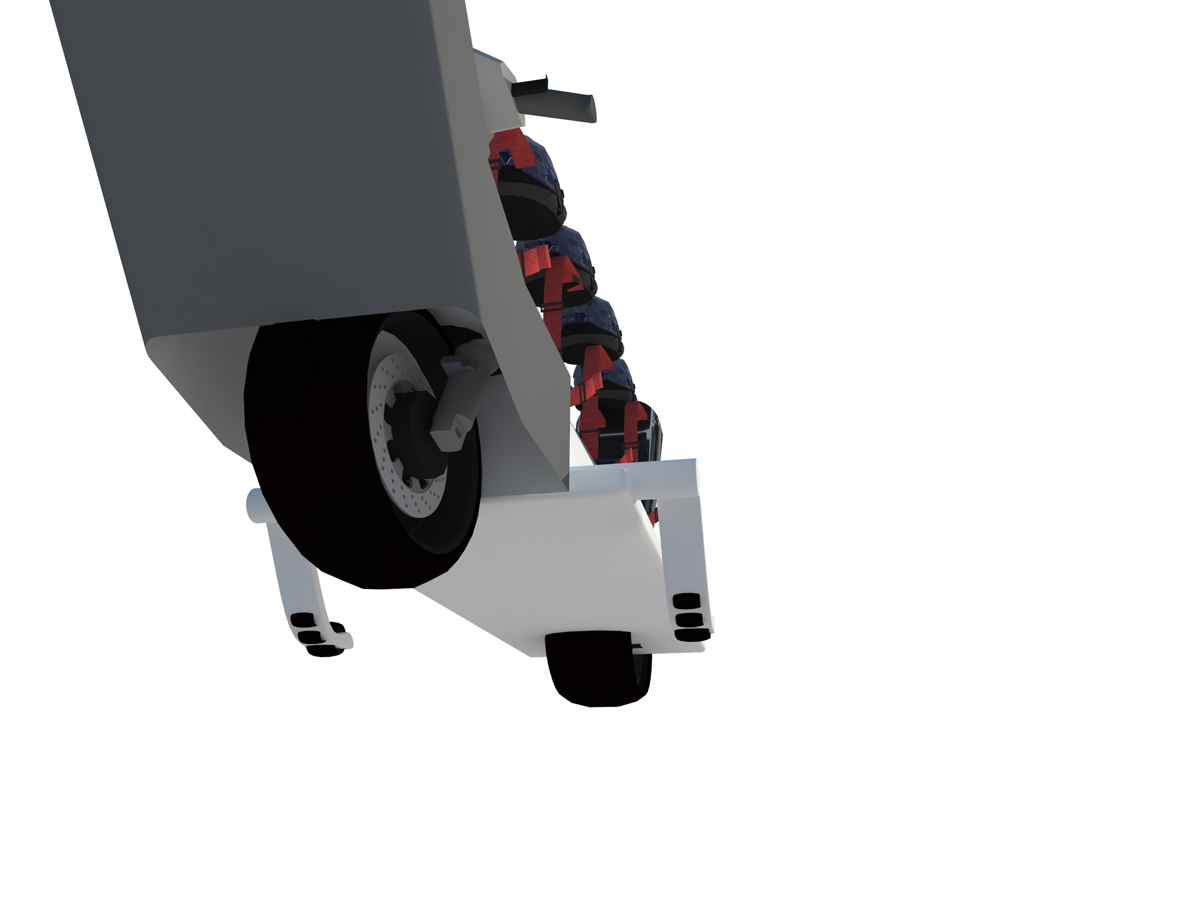

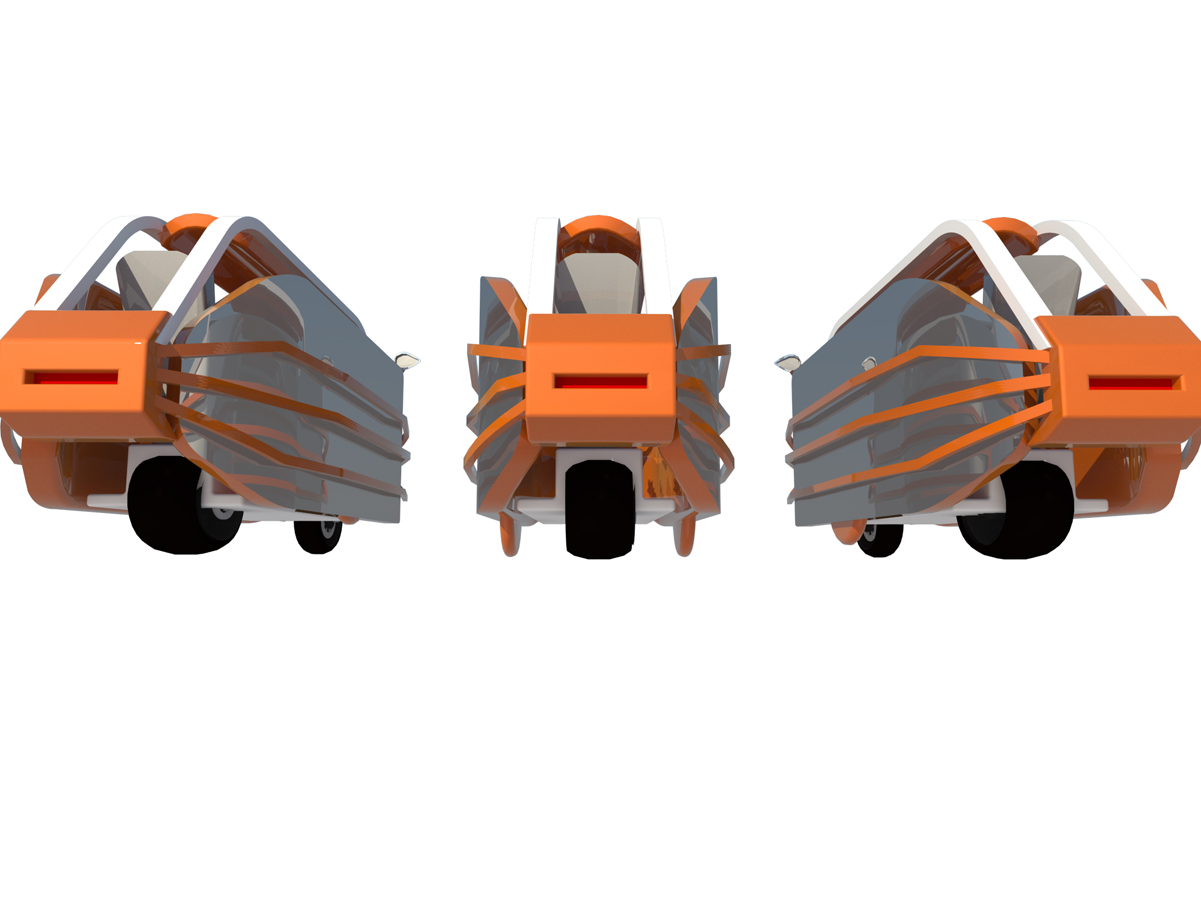

Roller skates retractable stabilizers (automatic or manual activation or foot / mechanical or electrical) attached to the side hulls
multi castors and wheels or caterpillar omnidirectional

fixed wheel suspension with stabilizer located at the back

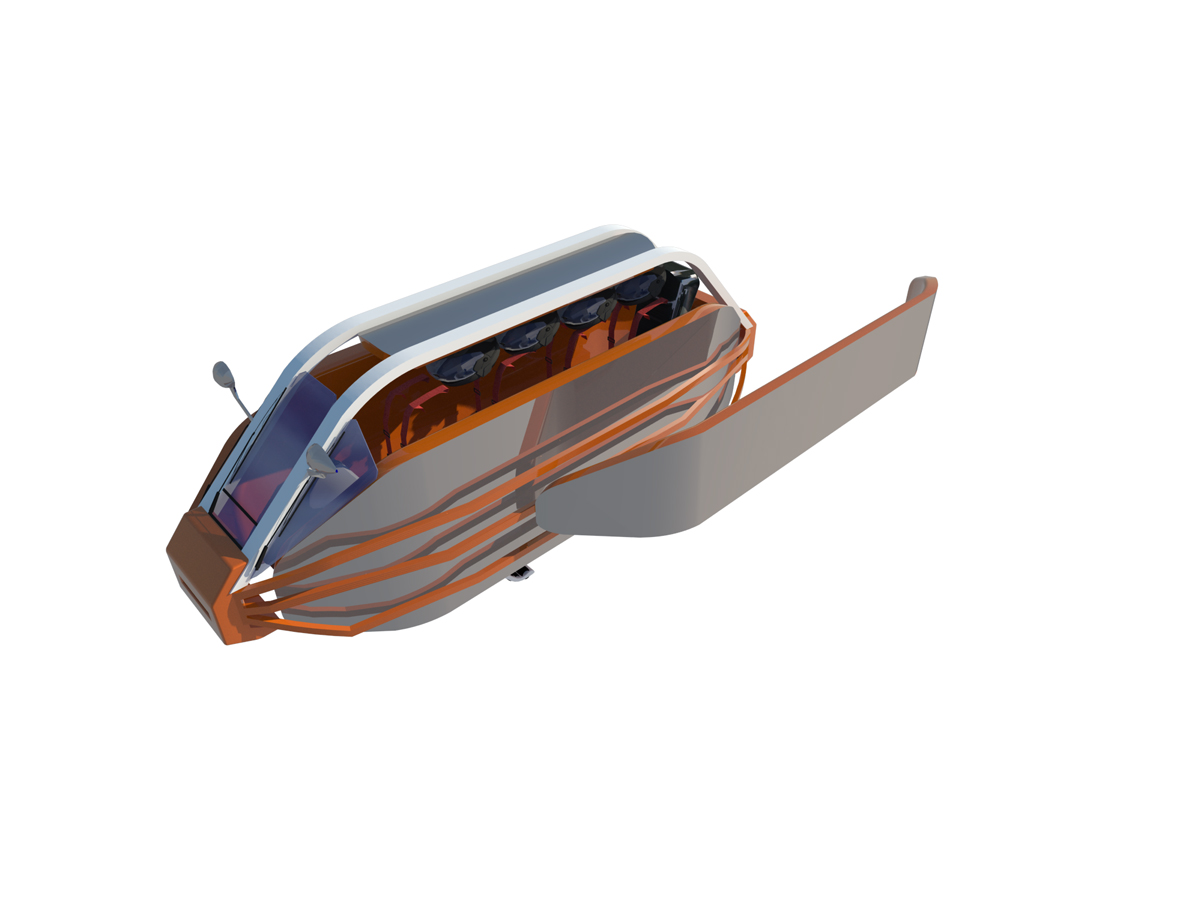

double hull sliding (sliding shell): the first shell glides over the second upon impact.

bumper rounded windscreen only 1 piece

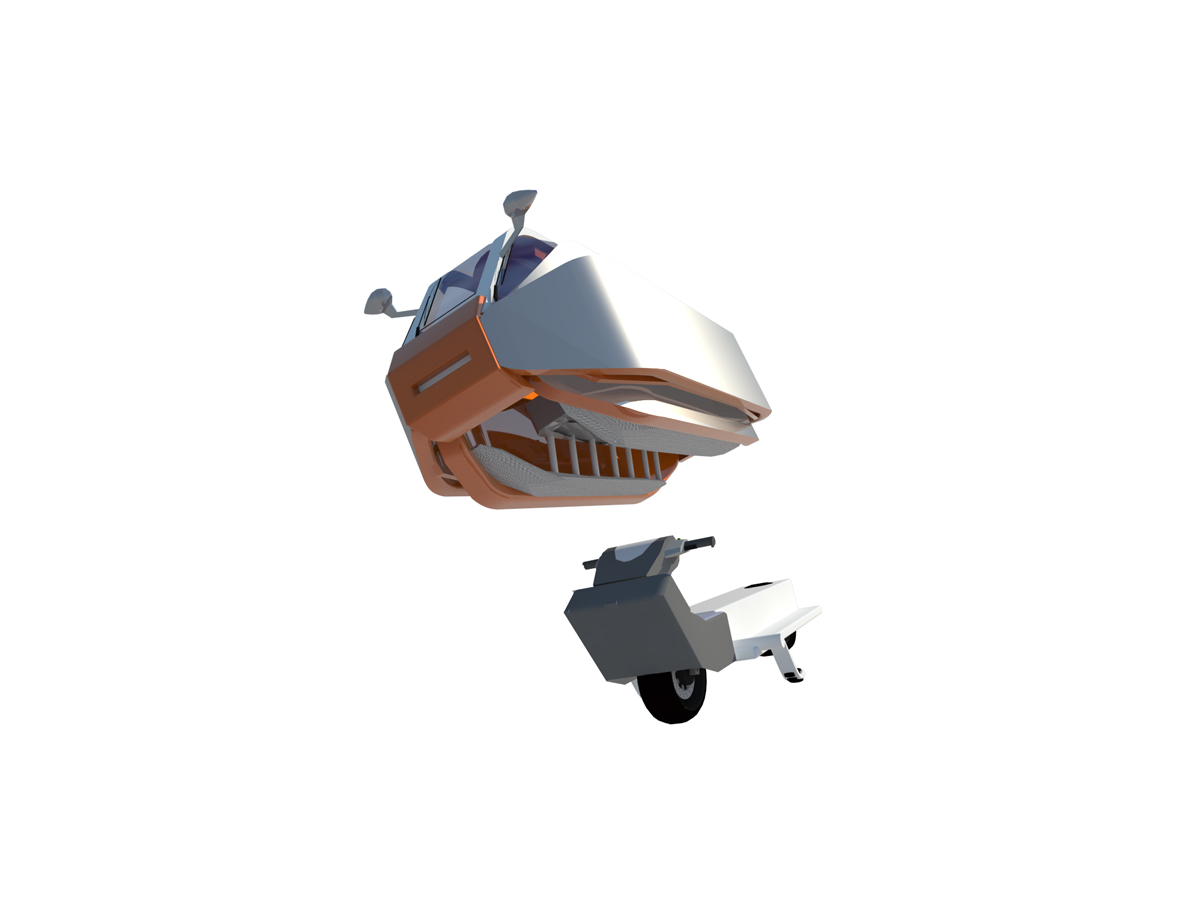

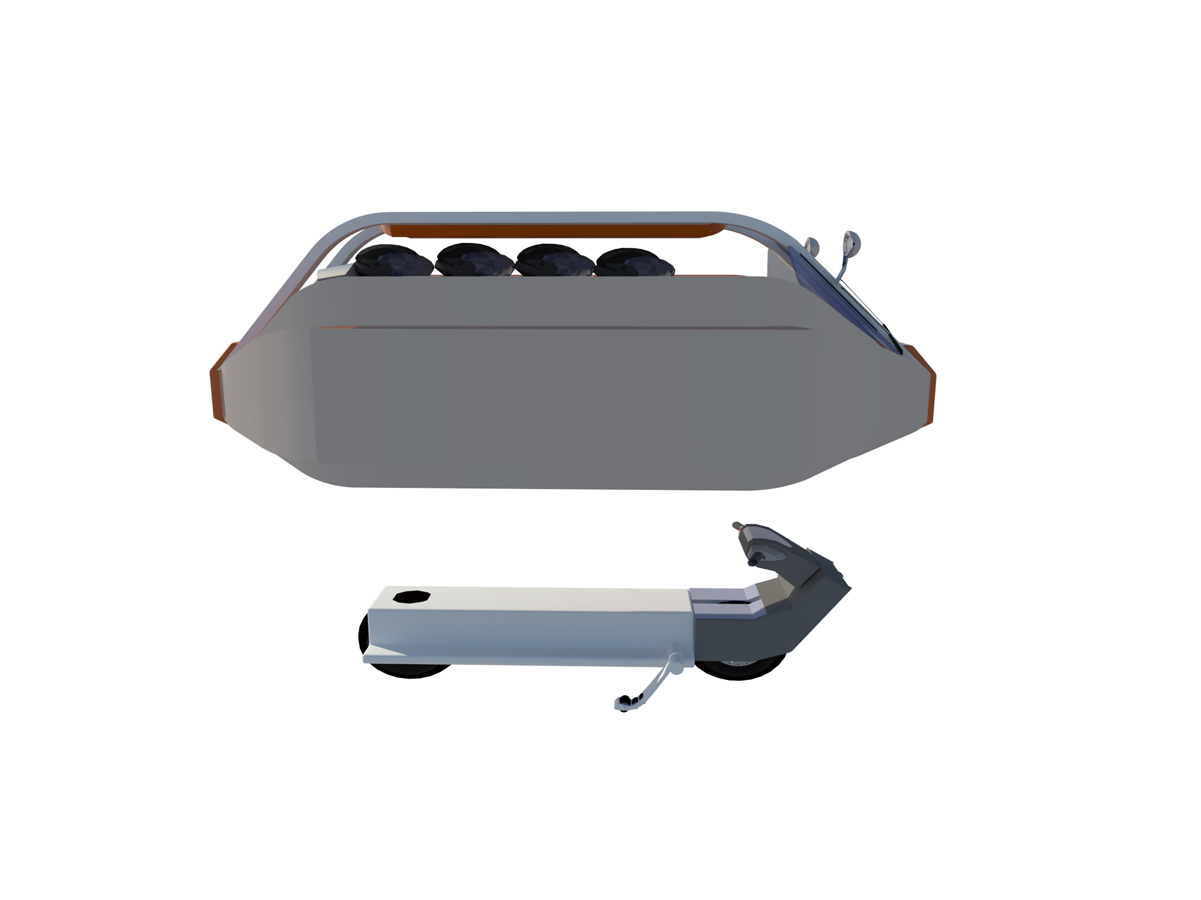

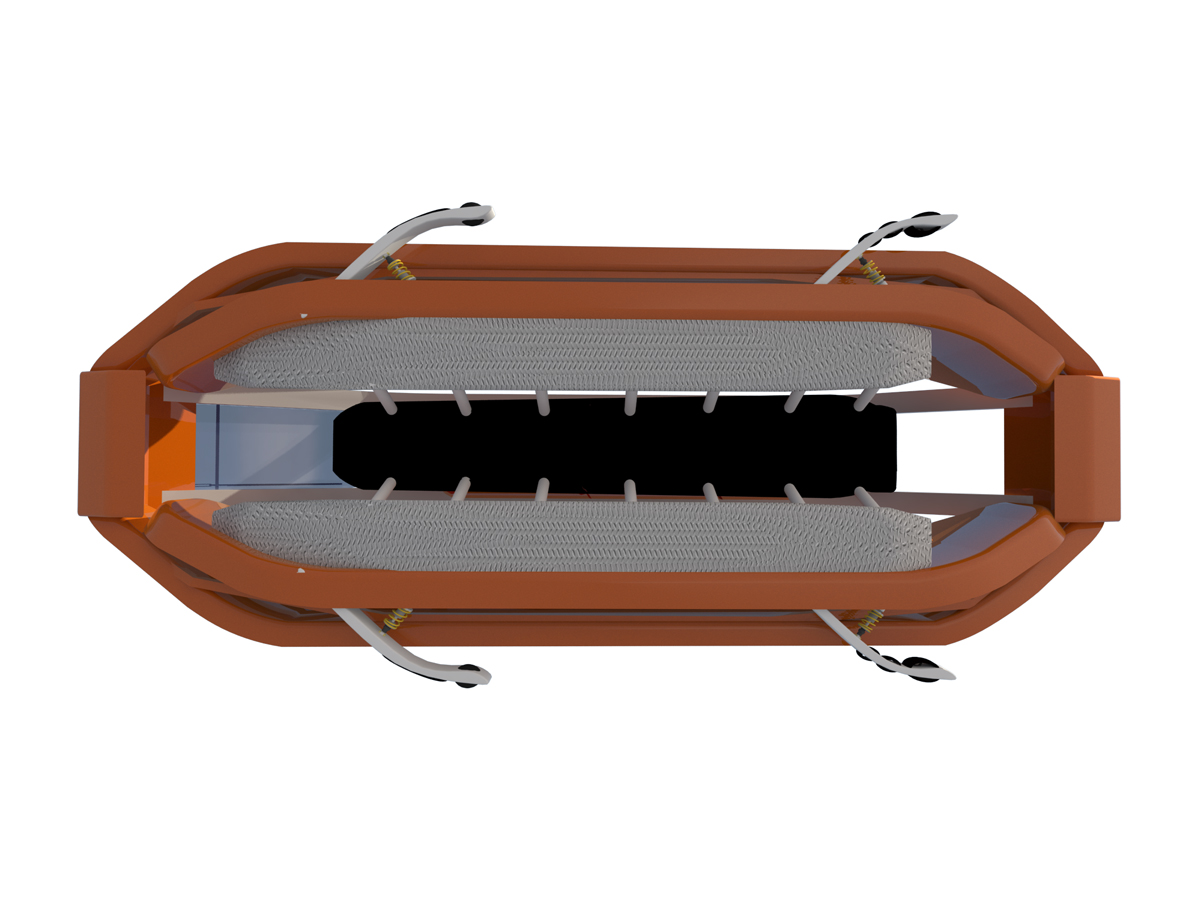

extracting cabin crash protection (the passenger cabin then separates the two wheels on which it is fixed)

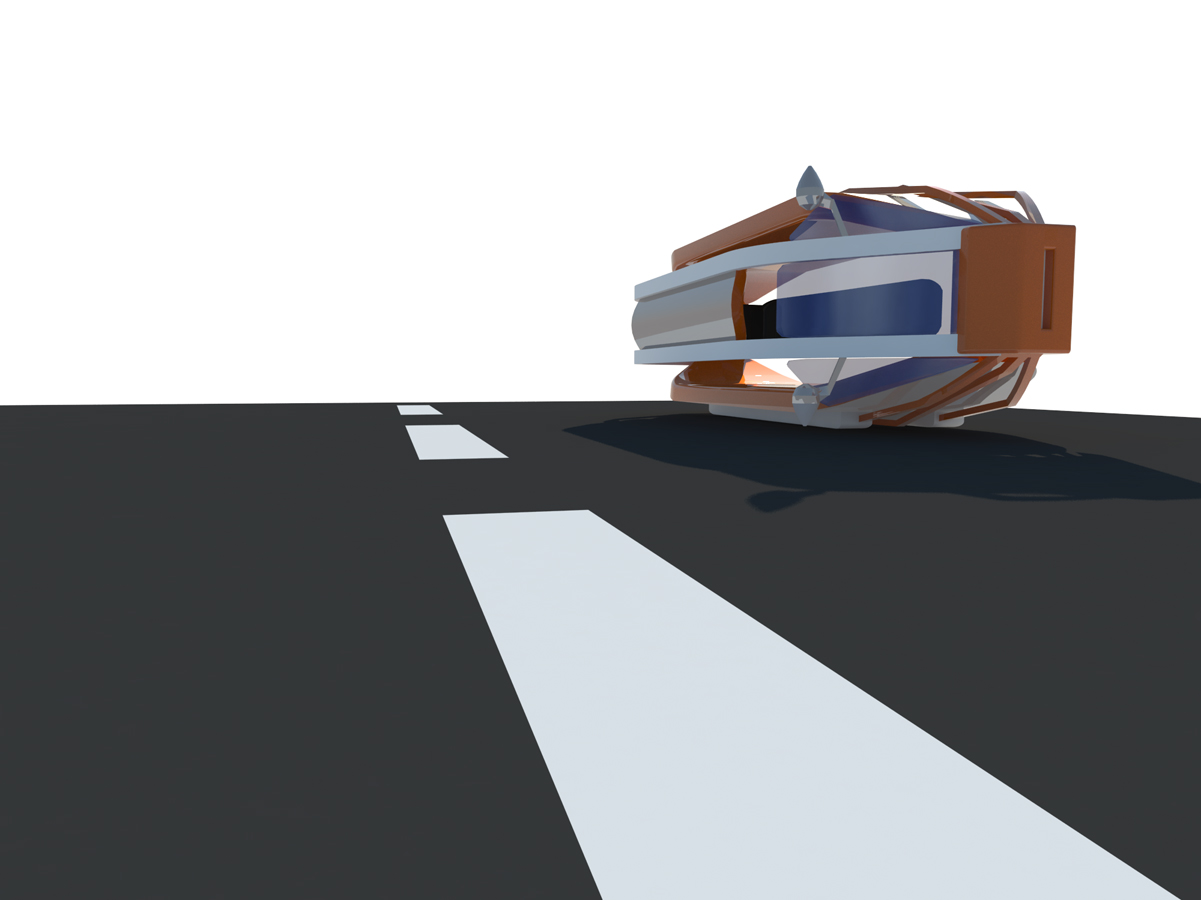

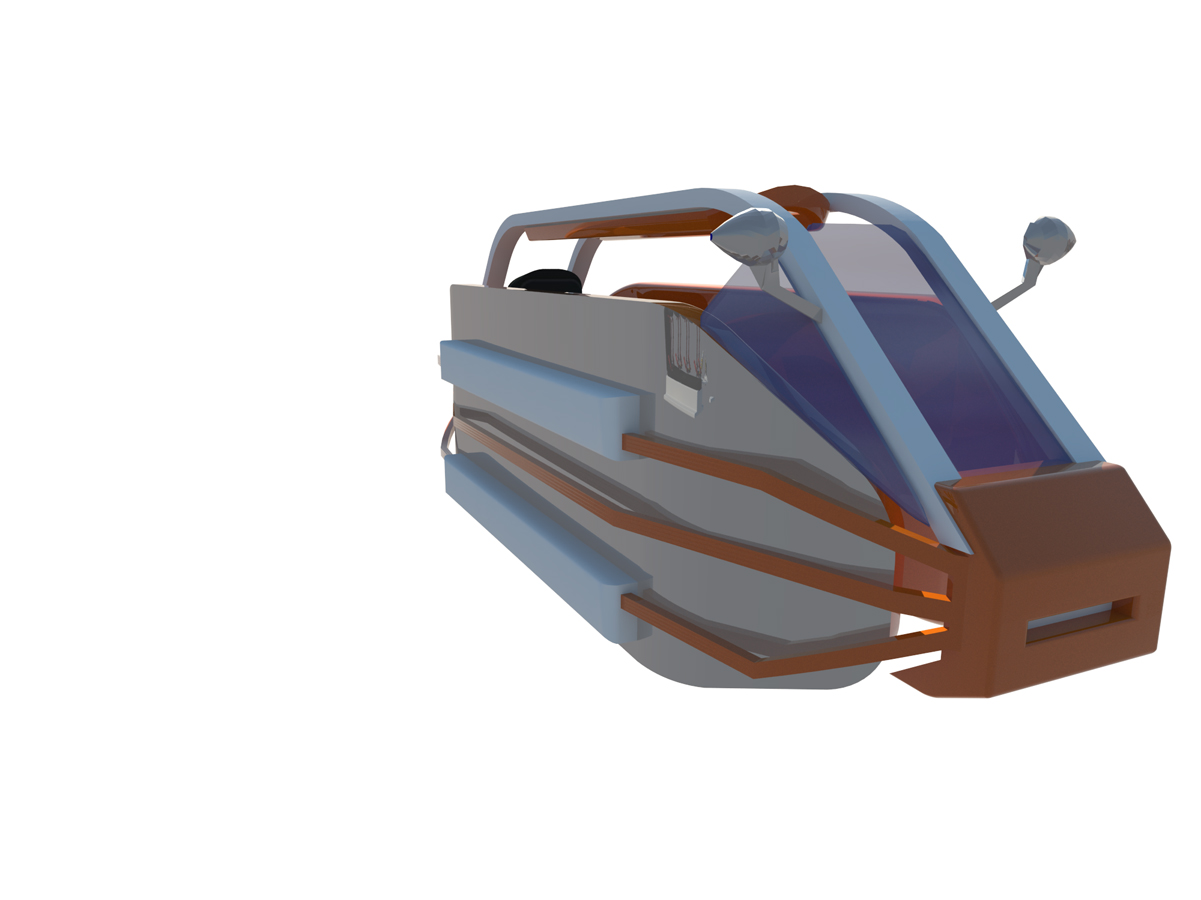

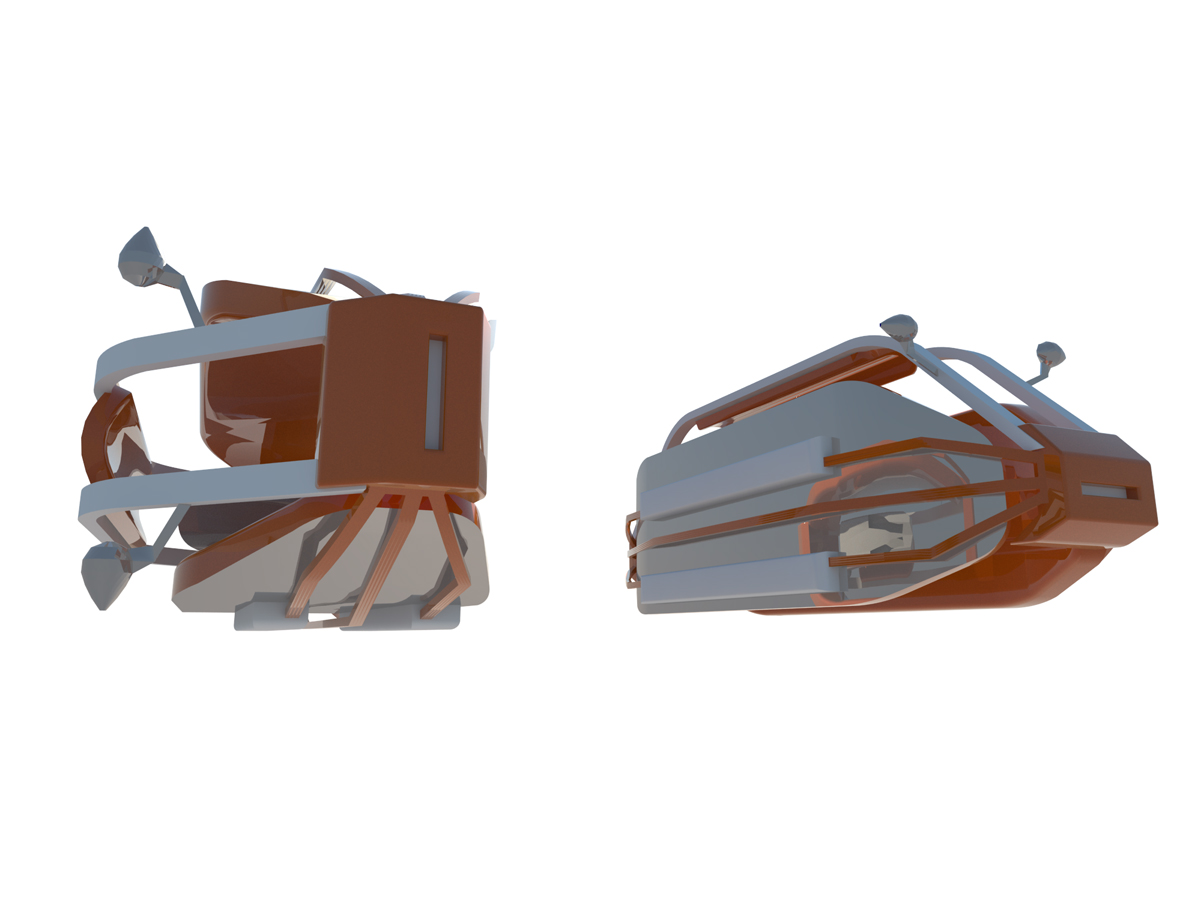

rails anti roll protection slippery braking when dropped on the side

wide foot pegs closed to passengers

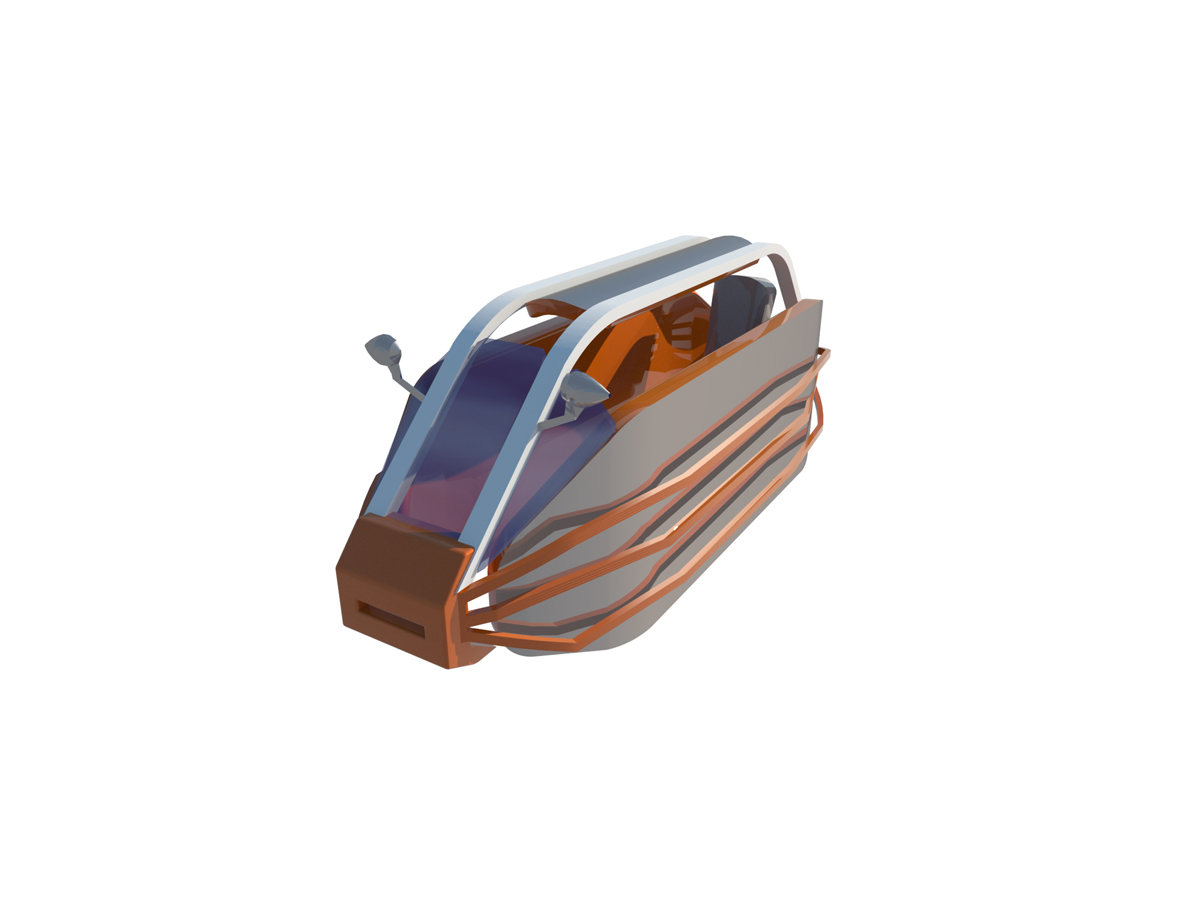

Full protection for scooter or 2 wheels motorbike.  double hull, with stabilizers, has multiple options.

This protective system consists of the following items:

metalic frame ready to weld or attach two wheels including the brackets (4 front 4 rear), one silent block multidirectional front and rear, 2 hinges at the

front,  2 locks with handles at the back for opening-closing.

2 protective double shells lateral composite aluminium (or other material) and synthetic foam mattresses covered with waterproof flexible material inwards.

2 vertical poles with protective top shell (same materials as the lateral shell)

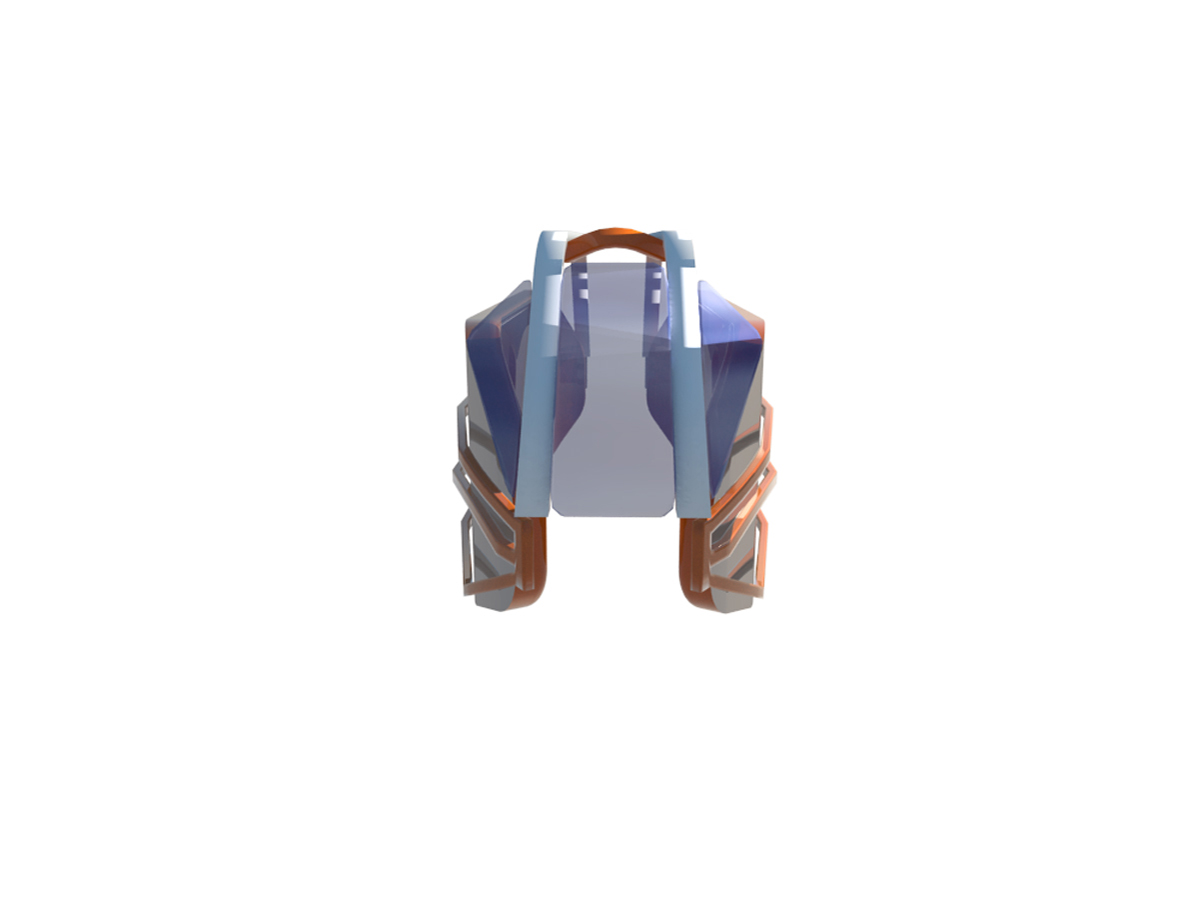

windshield

mirrors

wiper

bumper or rear bumper front has variable size, semi flexible semi rigid INCORPORATING lights. (option)

3 or 4 seater seat with belt and back, fixable on the vehicle to protect it.

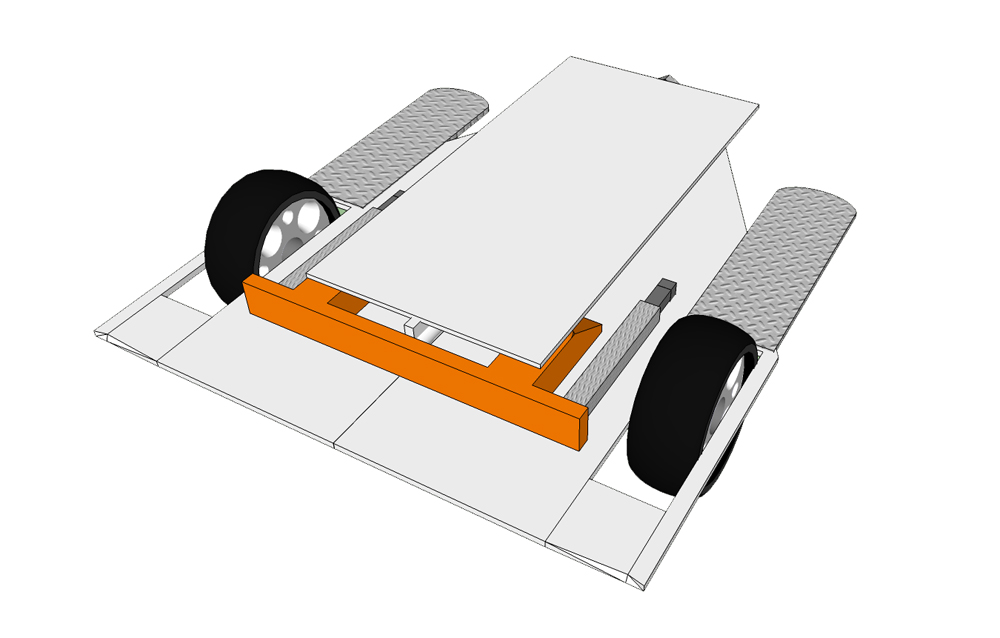

fixed wheel suspension with stabilizer located at the back

double hull sliding (sliding shell): the first shell glides over the second upon impact.

Another feature: arrow shape of the front and rear protection limiting flat against flat frontal impacts.

Specific drawings:

representation of the procedure to open door

representation of the protective shells side only

representation of the vehicle interior

2d representation view :  front, rear; side, top, bottom

representation exploded to see the various component of the protection separated

options:

Roller skates retractable stabilizers (automatic or manual activation or foot / mechanical or electrical) attached to the side hulls
multi castors and wheels or caterpillar omnidirectional

bumper rounded windscreen only 1 piece

extracting cabin crash protection (the passenger cabin then separates the two wheels on which it is fixed)

rails anti roll protection slippery braking when dropped on the side

wide foot pegs closed to passengers

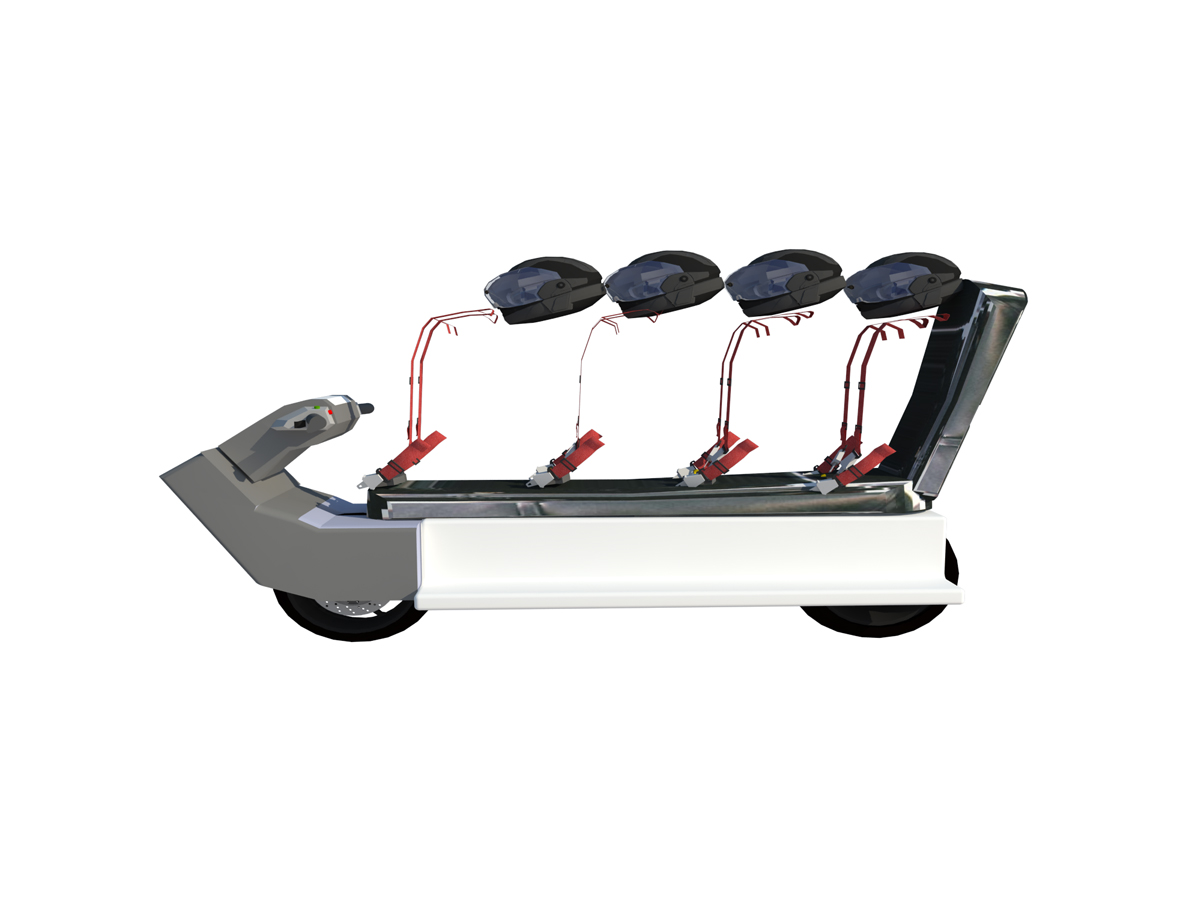

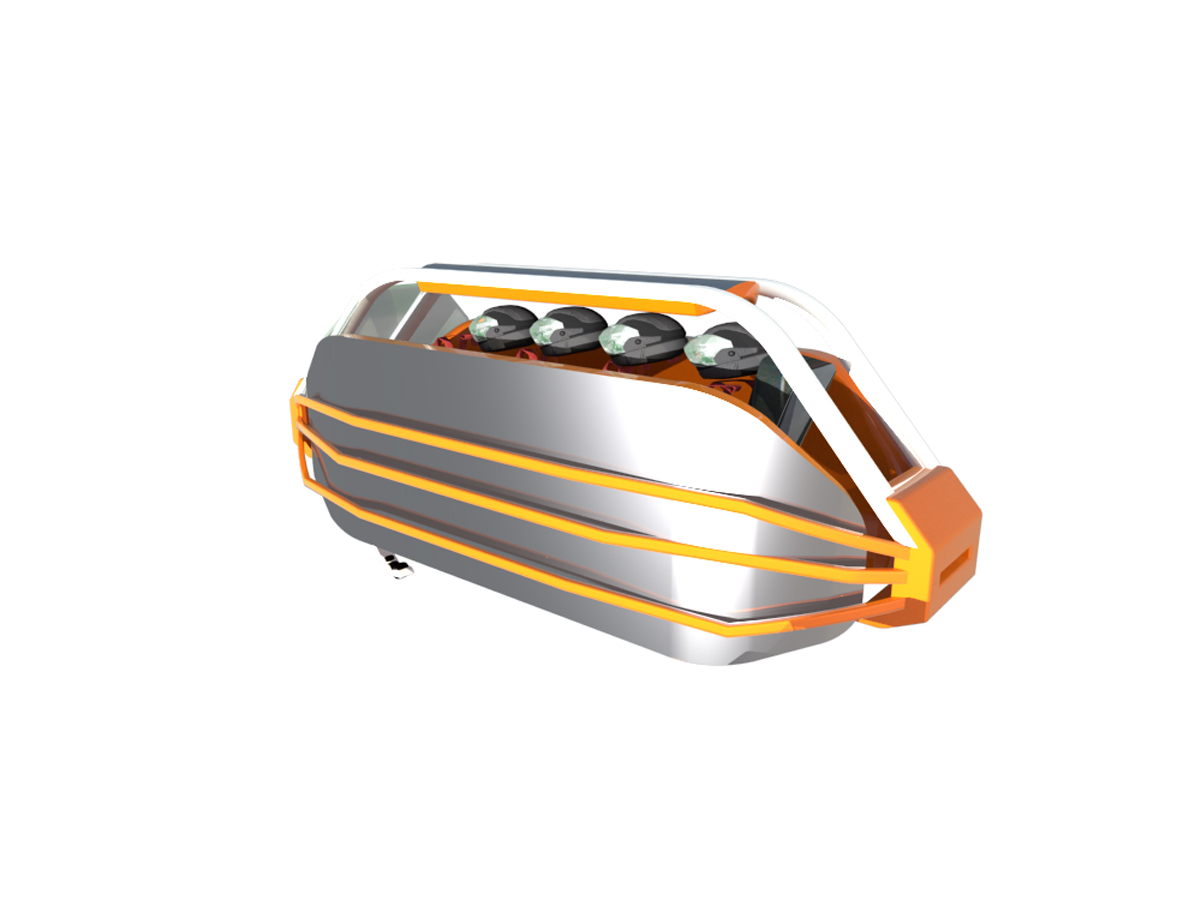

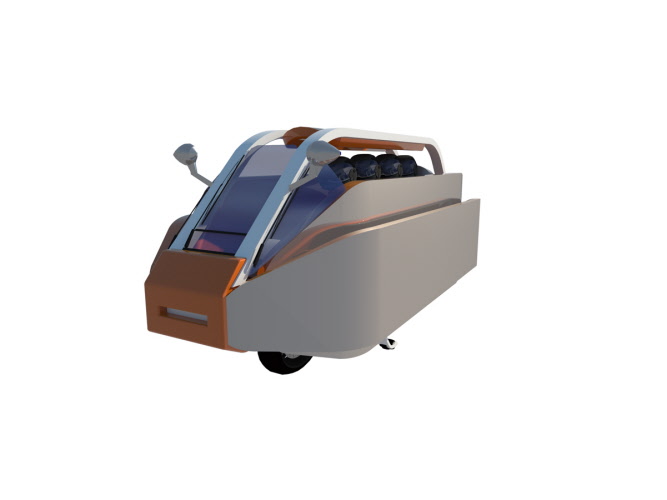

Scooter with integral cab and stabilizers with full fairing block framework (including mechanical part and motor), handlebars, seat, wheels, tires.

Elements of the core (engine block, wheel, seat, handlebars):

front and rear wheel
fork and handlebar fairing
engine part faired with footrests
safety belt or harness
helmets
seats 3 or 4 seats with backs
fixed wheel suspension with stabilizer located at the back

component of the protection part:

metalic frame ready to weld or attach two wheels including the brackets (4 front 4 rear), one block silent shock Multidirectional front and rear, 2 front and pomelles has 2 locks with handles at the back for opening.

2 protective cases (single or double) lateral composite aluminiu (or other material) and synthetic foam mattresses covered with waterproof flexible material inwards.

2 vertical poles with protective top shell (same side shields materials)

windshield

mirrors

wiper

bumper or rear bumper front has variable size, semi flexible semi rigid INCORPORATING lights.

seat 3 or 4 places with belt and case, attachable to the vehicle to protect it.

Another feature: arrow shape of the front and rear protection limiting flat against flat frontal impacts.

specific designs

representation exploded fashion

2d representation backside side turvy

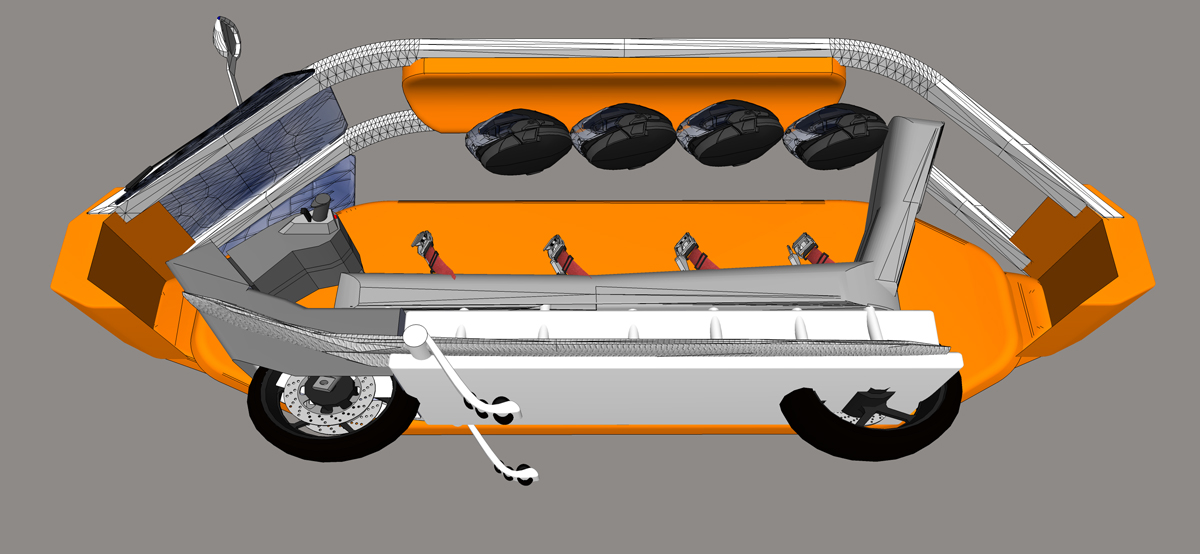

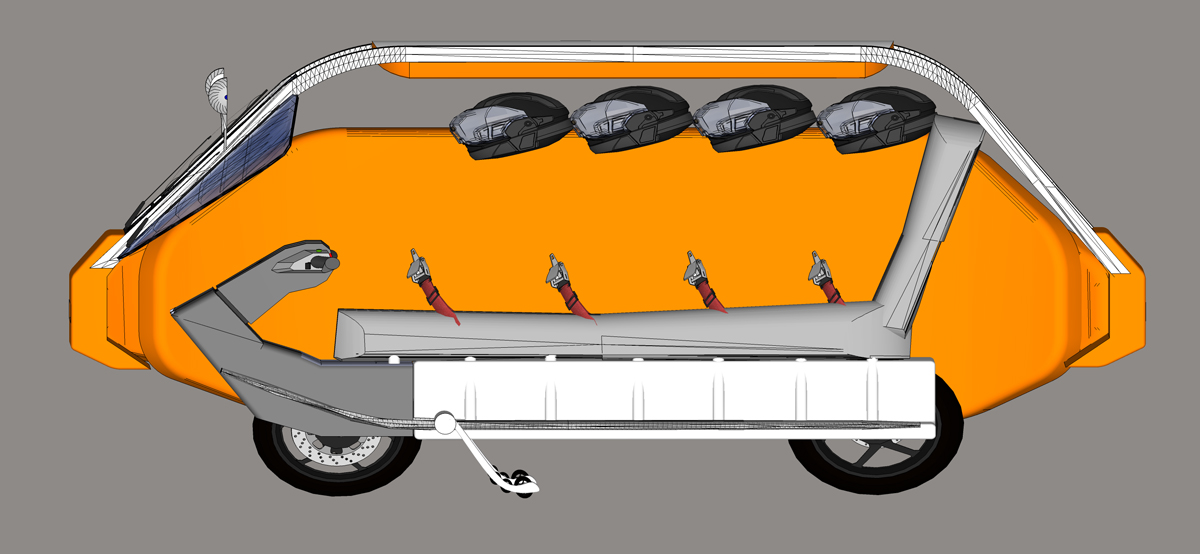

representation of the vehicle interior

options

stabilizers wheel located and hiding among protective shells adjustable lateral position (ground, raised, intermediate), alternative to other systems aforementioned stabilization.

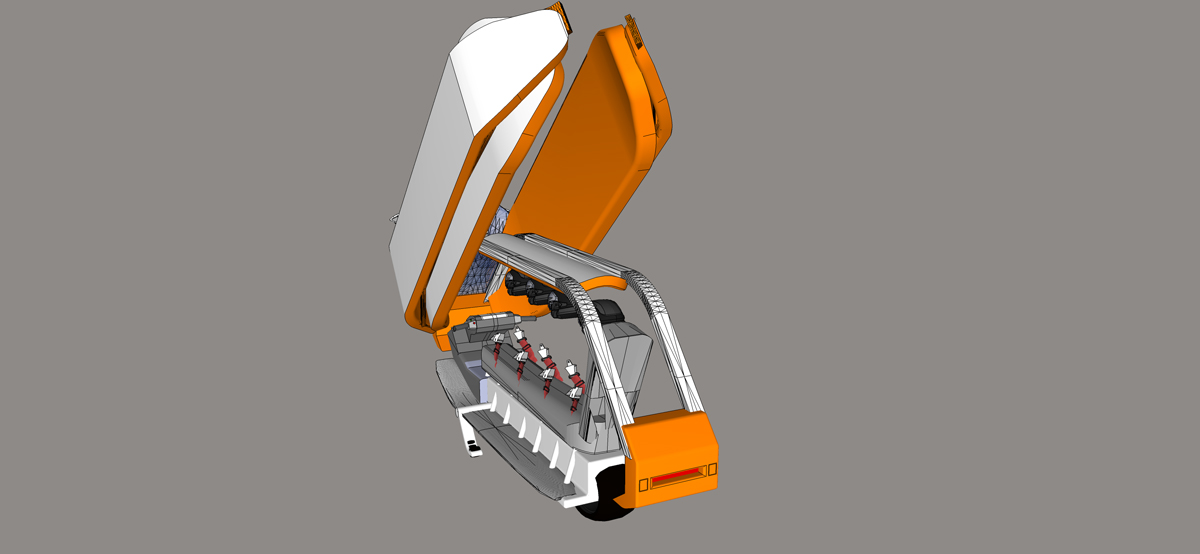

vertical door opening

extractability / cab separation framework in crashes

nb: extractable fashion Elements seats, back, belt, foot straps are welded to the cab portion and not the middle frame.

 Scooter with integral cab and stabilizers with full fairing block framework (including mechanical part and motor), handlebars, seat, wheels, tires.

Elements of the core (engine block, wheel, seat, handlebars):

front and rear wheel
fork and handlebar fairing
engine part faired with footrests
safety belt or harness
helmets
seats 3 or 4 seats with backs
Roller skates enable the barrier passage (sidewalk) retractable (automatic or manual activation or foot / mechanical or electrical) attached
to a cylinder Rotational

OR

stabilizers wheel located and hiding among protective lateral shells with adjustable position (ground, raised, intermediate / in this case
a central crutch is added for easy door opening)

component of the protection part:

metalic frame ready to weld or attach two wheels including the brackets (4 front 4 rear), one block silent shock Multidirectional front and rear, 2 front and

pomelles has 2 locks with handles at the back for opening.

2 protective cases (single or double) lateral composite aluminiu (or other material) and synthetic foam mattresses covered with waterproof flexible material

inwards.

2 vertical poles with protective top shell (same side shields materials)

windshield

mirrors

wiper

bumper or rear bumper front has variable size, semi flexible semi rigid INCORPORATING lights.

seat 3 or 4 places with belt and case, attachable to the vehicle to protect it.

Another feature: arrow shape of the front and rear protection limiting flat against flat frontal impacts.

specific designs

representation exploded fashion

2d representation backside side turvy

representation of the vehicle interior

options

stabilizers wheel located and hiding among protective shells adjustable lateral position (ground, raised, intermediate), alternative to other systems

aforementioned stabilization.

vertical door opening

extractability / cab separation framework in crashes

nb: extractable fashion Elements seats, back, belt, foot straps are welded to the cab portion
